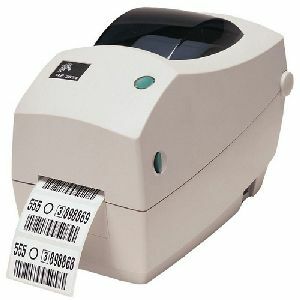

At 2.2" (56 mm), the direct thermal and thermal transfer TLP 2824 bar code label printer is ideal for retail and other label applications. The TLP 2824 redefines the compact printer class. It fits into areas other printers cannot, withstanding rough handling and integrating easily into a wide range of applications. A 5" (127 mm) media roll capacity and clear media window optimize productivity, while a maximum print speed of 4" (102 mm) per second enables fast job processing.
The TLP 2824 excels in delivering printing solutions for business and professional offices, including retail point of sale, shelf labeling, product marking, healthcare specimen labeling and patient tracking, inventory and asset management, small office or home office mailing, shipping, and file folder labeling.
Manufacturer:
Zebra Technologies Corporation
Manufacturer Part Number:
2824-11400-0001
Manufacturer Website Address:
www.zebra.com
Brand Name:
Zebra
Product Name:
TLP 2824 Thermal Label Printer
Product Type:
Label Printer
Print Color:
Monochrome
Print Technology:
Thermal Transfer
Maximum Mono Print Speed:
4 in/s
Print Resolution:
203 x 203 dpi Monochrome
Maximum Print Resolution:
203 x 203 dpi
Maximum Print Width:
2.2"
Bar Code Symbology Support:
EAN-8
Standard Memory:
128 KB
Flash Memory:
512 KB
Maximum Memory:
256KB SRAM
Interfaces/Ports:
1 x Black Serial
Media Type:
Roll Fed
Media Size:
2.36" x Roll Paper
Media Thickness:
0.007"
Maximum Roll Diameter:
5"
Label Width:
1
Label Length:
11 "
Input Voltage:
110V AC
Frequency:
50 Hz or 60 Hz
Additional Information:
Construction: ABS double-walled casing
OpenACCESS design
Head-up sensor
Media Thickness from 0.003" to 0.007"
Soft font storage in Flash memory
DOS Code Pages Supported: 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
Windows Code Pages Supported: 1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257
Maximum label and liner length (optional) 22"
Media sensors:
Transmissive
Reflective
Compatibility:
Operating System:
Windows 95
Windows 98
Windows ME
Windows NT4.0
Windows 2000
Windows XP
Platform Support:
PC
Certifications & Standards:
UL
FCC
VCCI/PSE
C-TICK
CCC/SRRC
NOM
CSA
CE
GOST-R
Standard Warranty:
1 Year Limited
Parts Warranty/Labor:
6 Month - Print Heads
