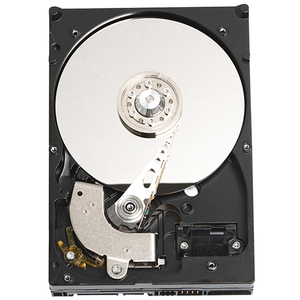

Carrying on the heritage of WD Caviar SE hard drive as industry-leading performers, Western
Digital offers WD Caviar SE Serial ATA hard drive which feature capacity of 80 GB and an 8 MB buffer, to fill acute demand in market segments such as high-end PC, workstation, and entry-level servers. Designers of enterprise storage systems and servers are
increasingly using desktop-class, large-capacity ATA hard drive because of the advantages
provided by the SATA interface. Benefits include a data transfer rate of 150 MB/s and
improved cabling that enables greater system design flexibility.
Manufacturer:
Western Digital Corporation
Manufacturer Part Number:
WD800JD
Manufacturer Website Address:
www.wdc.com
Brand Name:
Western Digital
Product Line:
Caviar
Product Name:
80GB 7200rpm Serial ATA Hard Drive
Packaged Quantity:
1
Package Type:
OEM
Product Type:
Hard Drive
Storage Capacity:
80GB
Bytes Per Sector:
512
User Sectors Per Drive:
156301488
Maximum External Data Transfer Rate:
150MBps
Maximum Internal Data Transfer Rate:
748Mbps
Rotational Speed:
7200 rpm
Seek Time:
2 ms Track-to-Track Average
Latency:
4.2 ms Average
Buffer:
8MB
Start/Stop Cycles:
50000
Drive Ready Time:
9 Second
Shock Tolerance:
65Gs @ 2 ms Read Operating
Vibration Tolerance:
0.75Gs @ 20 Hz to 300 Hz Linear - Operating
Data Error Rate:
< 1/10E14 bits Read Non-recoverable
Temperature:
41 F (5.0 C) to 131 F (55.0 C) Operating
Humidity:
5 to 95% Non-condensing Relative Humidity Operating
Sound Emission:
35 dB(A) Seek Mode 0 (Average)
Compatible Drive Bay Width:
3.5"
Compatible Drive Bay Height:
1/3H
Hot Swappable:
Yes
Dimensions:
1.03" Height x 4" Width x 5.79" Depth
Shipping Dimensions:
4.5" Height x 7.5" Width x 8.75" Depth
Weight:
1.32lb
Shipping Weight:
1.3 lb
Additional Information:
Operating - Random: 0.004 g2/Hz (10 to 300 Hz)
Non-operating - Linear: 5-20 Hz, 0.195 inches (dbl amp)
Compatibility:
PC
Certifications & Standards:
S.M.A.R.T
Standard Warranty:
3 Year Limited
Parts Warranty/Labor:
3 Year
