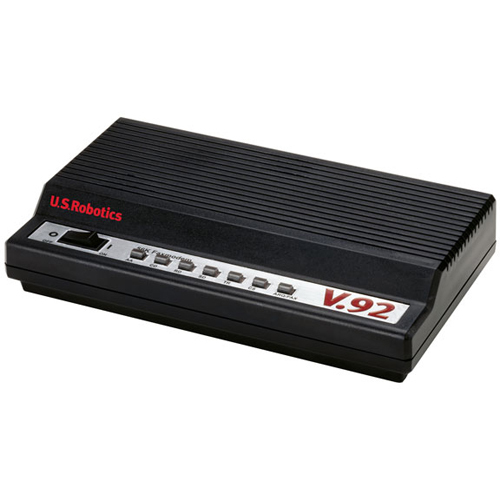

U.S. Robotics 5686E 56K Faxmodem

Computer > Enterprise Computing > Modems

Left Side Pixel
USR5686E - U.S. Robotics 5686E 56K Faxmodem
U.S. Robotics 5686E 56K Faxmodem
Bookmark and Share
US ROBOTICS
Availability: Out of Stock
Mfg Part# USR5686E
Please alert me when this product comes back in stock:
Email Address:E-Mail Signup
HACKER SAFE certified sites prevent over 99.9% of hacker crime.
BBB.org
Right Side Pixel
Bottom Pixel
Advertisement
U.S. Robotics has been building the world's best modems for over 25 years, and now we're bringing you the latest in modem technology. V.92 lets you send e-mail and attachments faster, get online quicker,and even take incoming phone calls without losing your Internet connection. Getting a better connection is as easy as the three- step installation procedure. The U.S. Robotics 56K* Faxmodem combines the superior performance and reliability of a controller-based modem with the convenience of V.92 technology. *Capable of receiving at up to 56 Kbps and sending at up to 48 Kbps (or 31.2 Kbps with V.90 server). Due to FCC regulations, receiving speeds are limited to 53 Kbps. Actual speeds may vary. V.92 and V.90 features require compatible phone line and support from your Internet Service Provider (ISP). U.S. Robotics modems featuring V.92 enhancements are backward compatible and will negotiate the highest possible speed when connecting to an ISP.

General Information
  • Manufacturer:
    U.S. Robotics.
  • Manufacturer Part Number:
    USR5686E
  • Manufacturer Website Address:
    www.usr.com
  • Brand Name:
    U.S. Robotics
  • Product Model:
    5686E
  • Product Name:
    5686E 56K Faxmodem
  • Packaged Quantity:
    1
  • Product Type:
    Data/Fax Modem
Technical Information
  • Fax Technology:
    Group 3
  • Command Set:
    AT Command Set
  • Modulation:
    ITU-T V.34
  • Data Compression:
    MNP-5
  • Error Correction:
    ITU-T V.42
Interfaces/Ports
  • Bus Type:
    Serial
  • Host Interface:
    Serial
  • Interfaces/Ports:
    1 x 25-pin DB-25 RS-232 Serial
Media & Performance
  • Modem Speed:
    56 Kbps
  • Modem/Fax Data Rate:
    56 Kbps Data Receive V.90
Physical Characteristics
  • Form Factor:
    External
  • Dimensions:
    4.9" Height x 10.9" Width x 5.8" Depth
  • Weight (Approximate):
    2 lb
Miscellaneous
  • Package Contents:
    U.S. Robotics 56K Faxmodem AC Power Adapter RJ-11 phone cord (7 ft) Quick Installation Guide Installation CD-ROM
  • System Requirements:
    V.90 requires a V.90 56K ITU standard capable service provider V.92 requires a V.92 56K ITU standard capable service provider V.92 Call Notification feature requires Call Waiting service from your local phone company V.92 Call Identification feature requires Call Waiting/Caller ID services from your local phone company RS-232 serial cable (not included)
  • Compatibility:
    IBM compatible PC 56K compatible local analog phone line Modem is compatible with Windows XP, Windows NT 4.0, Windows 2000, Windows ME, Windows 98, Windows 95, Windows 3.1, Linux and DOS
  • Certifications & Standards:
    FCC approved (Part 15 Class B/Part 68) IC approved UL listed CUL listed
  • Platform Supported:
    PC
Warranty
  • Standard Warranty:
    2 Year Limited
