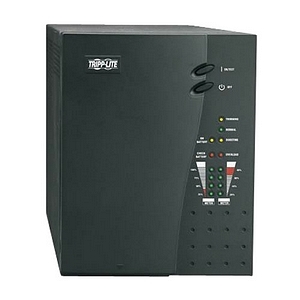

Tripp Lite's SMART750XL intelligent, line-interactive sine wave UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 29 minutes half load runtime and 12 minutes fully loaded. Runtime is expandable with optional BP36V27 external battery packs. 750VA / 450 watt power handling capability and full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic applications. Includes 8 protected NEMA 5-15R output receptacles. Supports simultaneous remote monitoring of UPS and site power conditions via built-in network accessory card slot, USB and DB9 serial monitoring ports. Optional SNMPWEBCARD accessory enables remote monitoring of UPS as a managed device via network management console applications. Communications interfaces support messaging of UPS and line power status, plus output power control for scheduled or immediate reboot of all connected devices at once. Includes PowerAlert UPS monitoring and unattended shutdown software with management support for an unlimited number of network UPS systems. Free PowerAlert enterprise management software is also available for select opportunities. Built-in audible alarm and 15 LEDs provide graphical readout of line power, battery power, battery charge level, load level, plus AVR boost and trim operational status information. Network grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Attractive, black tower housing in rugged all-metal enclosure. Two year warranty with $250,000 Ultimate Lifetime Insurance.
Plug/Connector Type:
NEMA 5-15P
Receptacles:
8 x NEMA 5-15R
Switching Time:
4 ms
Load Capacity:
750 VA/450 W
Input Voltage:
110 V AC
Input Voltage Range:
120 V AC Single-phase
Output Voltage:
120 V AC Single-phase
Frequency:
60 Hz
Waveform Type:
Sine Wave
Filtering:
EMI / RFI
Status Indicators:
Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information
Batteries:
Sealed Lead Acid User Replaceable Hot-swappable
Backup/Run Time:
0.48 Hour 375 W Half Load
Battery Life:
26297.44 Hour to 52594.88 Hour
Battery Recharge Time:
4 Hour
Form Factor:
Tower
Power Cord/Cable:
72"
Package Contents:
SMART750XL UPS System PowerAlert Software CD-Rom USB and serial cabling User manual with warranty information
Additional Information:
SMART750XL line-interactive UPS offers battery derived sine wave AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression 750VA / 450 watt power handling capability with full-time sine wave output offers guaranteed compatibility with networking, telecom and other sensitive electronic devices Large internal batteries offer runtimes of 29 minutes at half load (375VA) and 12 minutes at full load (750VA) Runtime is expandable with the addition of optional BP36V27 external battery packs Automatic Voltage Regulation (AVR) circuits maintain user-selectable 100, 110, 120 or 127V nominal output over an input voltage range of 91-145V Includes 8 fully-protected NEMA 5-15R output receptacles arranged in a single load bank that can be powered off and back on again via software interface PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user-defined script commands Offers simultaneous monitoring by up to 3 directly-connected devices through included USB, DB9 and SNMP* interfaces (*requires optional SNMPWEBCARD), or the monitoring of any number of additional UPS systems over IP with included PowerAlert monitoring software. Free PowerAlert enterprise management software is also available for select opportunities Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power restored, AC line voltage, DC battery voltage and remaining battery capacity Supports timed inverter shutoff after unattended shutdown, activate self-test and UPS output power control for scheduled or immediate reboot of connected equipment Supports Tripp Lite's WatchDog software application to restore unresponsive programs by systematically restarting applications, operating systems and ultimately rebooting completely locked computers by momentarily switching UPS power off and back on again (requires optional WATCHDOGSW) 15 LEDs offer continuous detailed status information of UPS operating parameters and site power quality Hot-swappable batteries allow on-site battery replacement without powering off connected equipment UL (USA), cUL (Canada), NOM (Mexico), FCC Class B (Emissions) Listed 2 year warranty with up to $250,000 connected equipment insurance
System Requirements:
TYPICAL APPLICATIONS: Ideal for the protection of network fileservers, internetworking gear, switches, hubs, POS terminals, VOIP telephony and traditional PBX switching systems, back office computer systems, ATM machines, informational/internet/commerce kiosks, remote unattended servers, web servers, database servers, security systems, card readers, security cameras and other sensitive electronic devices requiring clean, continuously-regulated output power.
Certifications & Standards:
UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
