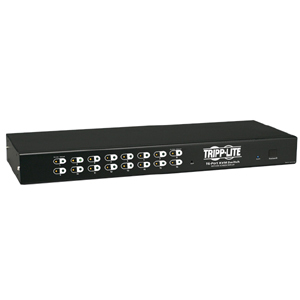

Tripp Lite NetDirector 16-Port KVM Switch

Call us at 888-566-NERD(6373)

Home

Your Account

Help

Your Cart: 217 Item(s): $60089.88 View Cart

Home > Computer > Enterprise Computing > KVM & Video Switches

TRIPP LITE

Price: $567.99

Availability: 5 In Stock

Mfg Part# B022016

Quantity:

Product Information

Recommended Accessories

Tripp Lite's 16-port KVM Switch is the optimal solution for controlling multiple computers (combination of PS/2, Sun, & USB) from one keyboard, mouse and monitor. A single unit occupies a mere 1U of rack space yet can control up to 16 computers. Control PS/2, USB, or SUN systems when using the appropriate cable kit. Daisy-chain additional KVMs in order to control up to 512 computers from a single console. Easily switch ports by use of the on screen display (OSD), or keyboard hot keys. It features keyboard and mouse emulation for error-free boot-ups and works on all operating systems. This device also supports ultra high 180MHz video resolutions up to 1920 x 1440 pixels without any noticeable degradation. Easily add access over IP with Tripp Lite's Remote IP Access Unit Tripp Lite warrants this product to be free from defects in materials and workmanship for 2 years.

General Information

Manufacturer:
Tripp Lite
Manufacturer Part Number:
B022-016
Manufacturer Website Address:
www.tripplite.com
Brand Name:
Tripp Lite
Product Line:
NetDirector
Product Name:
NetDirector 16-Port KVM Switch
Product Type:
Analog KVM Switch

Technical Information

Number of Computers:
16
Number of Users:
1 x Local User
Video Signals:
MultiSync
Graphics Resolution:
1920 x 1440 Maximum
Video Bandwidth:
180MHz
Scan Intervals:
User Specified: 1 - 255 Seconds
Security Features:
Multi-level password security to ensure only authorized people have access to the connected computers

Interfaces/Ports

User/Console Ports:
1 x 6-pin mini-DIN (PS/2) Female Mouse
Computer Ports:
16 x 15-pin SPDB-15 Female
Other Ports:
1 x 25-pin DB-25 Male Daisy Chain

Power Description

Input Voltage:
9 V DC
Power Consumption:
8 W Maximum

Environmental Conditions

Temperature:
-4 to 150 Storage
Humidity:
0 to 80% Relative Humidity

Physical Characteristics

Color:
Black
Form Factor:
1U 19" Rack-mountable
Dimensions:
1.77" Height x 19" Width x 6.1" Depth
Shipping Dimensions:
5.5" Height x 22" Width x 9.75" Depth
Weight:
6.25 lb
Shipping Weight:
9.75 lb

Miscellaneous

Package Contents:
NetDirector 16-Port KVM Switch16 port KVM switchAC power adapterInstruction manualFlash-upgrade cableB015-000 USB to PS/2 adapter (1)
Additional Information:
Daisy-chain multiple KVM switches in order to control up to 512 computers Does not require software or complicated set-up procedures Select port by using the on screen display (OSD), keyboard hot keys, or by selector switch on front of unit Offers autoscan feature Keyboard and mouse emulation for dependable computer boot-up and works on all operating systems Offers compatibility with most mice, including scrolling mice 2 LEDs per port - one indicates when the computer is connected & on, the other indicates when the computer has been selected PS/2,Sun and USB compatibility by connecting appropriate Tripp Lite cable kit Hot pluggable - add or remove computers without having to power down the switch Auto-sensing of station position on daisy chained installations - no need for manual DIP switch setting - front panel LED indicates station position Port names automatically reconfigured when station sequence is changed 2 level logout: manual and timed
System Requirements:
PS/2 mouse (or a USB mouse with USB-to-PS/2 adapter) PS/2 keyboard (or a USB or AT keyboard with a PS/2 adapter) PS/2 computer (or a Sun or USB computer with appropriate adapter). 1 P774-006, P774-010 or P774-015 KVM cable kit per port
Certifications & Standards:
FCC Part 15, Class A
