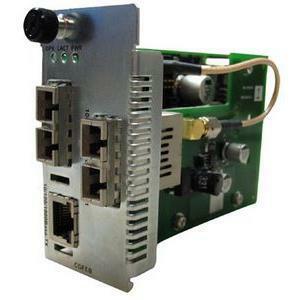

Transition Networks Point System 10/100/1000BASE-T to 1000BASE-SX Media Converter

Computer > Enterprise Computing > Network Transceivers

CGFEB1013-110 - Transition Networks Point System 10/100/1000BASE-T to 1000BASE-SX Media Converter

Availability: Out of Stock

Mfg Part# CGFEB1013110

Please alert me when this product comes back in stock:
Email Address:

Product Information

Reviews

Pros / Cons

Point System 10/100/1000BASE-T to 1000BASE-SX Media Converter is a perfect integration option for network managers who want to migrate from 10/100 networks to Gigabit Ethernet at a fraction of the cost. A low-cost Fiber Tap option for network managers who want to actively monitor the critical Gigabit fiber traffic. The active optical Tap enables the users to clone the traffic to the adjacent fiber port.

General Information

Manufacturer:
Transition Networks, Inc
Manufacturer Part Number:
CGFEB1013-110
Manufacturer Website Address:
www.transition.com
Brand Name:
Transition Networks
Product Line:
Point System
Product Model:
CGFEB1013-110
Product Name:
Point System 10/100/1000BASE-T to 1000BASE-SX Media Converter
Product Type:
Media Converter

Interfaces/Ports

Number of Ports:
3
Interfaces/Ports:
1 x RJ-45

Media & Performance

Connectivity:
Fiber
Connectivity Media:
1000Base-SX 50/125 um Multi-mode Fiber
Distance Supported:
1804 ft

Network & Communication

Network Technology:
1000Base-SX

Management & Protocols

Management:
1000BASE-SX Tap Port: Clones traffic, offering complete access to network traffic at line rate Simple Network Management Protocol (SNMP) managed TX or RX monitoring 802.1P Priority Mapping Link Pass Through Remote Fault Signaling Source Address Change
Protocols:
SNMP

Controls/Indicators

Status Indicators:
TP (Duplex/Link/Activity) TP (10Mbs/100Mbs/1000Mbs) DPX (Fiber Duplex) LACT (Fiber Link/Activity) PWR (Power)

Power Description

Power Consumption:
6.50 W

Physical Characteristics

Form Factor:
Internal
Dimensions:
3.4" Height x 3.4" Width x 4.9" Depth

Miscellaneous

Additional Information:
RAM Buffers 256K Wavelength: 850nm Filtering Addresses 4K MAC Addresses Automatic Link Restoration Remote Firmware Upgrade Jumper 1: Select TX or RX to sniffer (if TAP option is installed)
Compatibility:
19-slot Point System Chassis 18-slot Point System Chassis 13-slot Point System Chassis 8-slot Point System Chassis 2-slot Point System Chassis
Certifications & Standards:
Regulatory Compliance: CISPR/EN55022 Class A EN55024 EN61000 FCC Class A CE Mark IEEE Standard: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3xy IEEE 802.1P: priority mapping

Warranty
