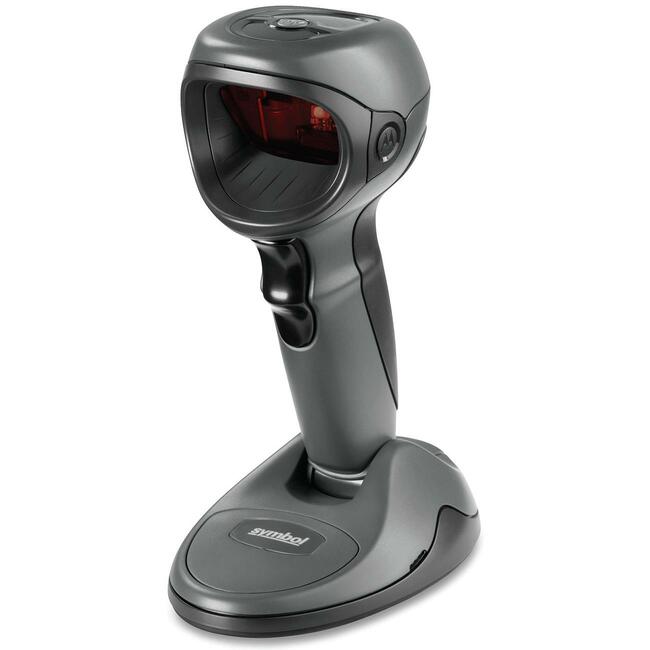

Motorola Symbol DS9808LR Bar Code Reader

Computer > Printers & Scanners > Scanners

DS9808-LR20007CRWR - Motorola Symbol DS9808LR Bar Code Reader

Availability: Out of Stock

Mfg Part# DS9808LR20007CRWR

Please alert me when this product comes back in stock:
Email Address:

Product Information

Reviews

Pros / Cons

Achieve a new level of productivity and throughput at the checkout stand with the Motorola's DS9808LR Bar Code Reader. The groundbreaking DS9808LR Bar Code Reader is designed inside and outside to bring a new level of versatility,functionality and performance to the checkout stand. Outside, the DS9808LR Bar Code Reader offers an extraordinary one-of-a-kind hybrid form factor by marrying a solid base with our advanced handheld ergonomics, creating a scanner that is truly designed to deliver superior comfort and ease of use in both handheld and hands-free scanning modes.

General Information

Manufacturer:
Motorola, Inc
Manufacturer Part Number:
DS9808-LR20007CRWR
Manufacturer Website Address:
www.motorola.com/us
Brand Name:
Motorola
Product Line:
Symbol
Product Name:
Symbol DS9808LR Bar Code Reader
Product Type:
Handheld Bar Code Reader

Technical Information

Connectivity Technology:
Wired
Wireless Technology:
Not Applicable
Bar Code Dimension:
2D
Bar Code Symbology Supported:
1-D / LINEAR CODES: UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals) ISBN (Bookland) ISSN Coupon Code Code 39 (Standard, Full ASCII, Trioptic) Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated) Code 93 Codabar/NW7 Code 11 (Standard, Matrix 2 of 5) MSI Plessey I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5) GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse) Base 32 (Italian Pharmacode) PDF417 (and variants): PDF417 (Standard, Macro) MicroPDF417 (Standard, Macro) Composite Codes (CC-A, CC-B, CC-C) 2-D: TLC-39 Aztec (Standard, Inverse) MaxiCode, DataMatrix/ECC 200 (Standard, Inverse) QR Code (Standard, Inverse, Micro) Postal: U.S. Postnet and Planet U.K. Post Japan Post Australian Post Netherlands KIX Code Royal Mail 4 State Customer UPU FICS 4 State Postal USPS 4CB
Light Source:
LED
Image Sensor:
Imager
Decode Rate (in/s):
2540 mm/s
Maximum Scan Resolution:
7.80 mil
Depth of Field:
0" - 5"@5 mil - Code 39
Scan Pattern:
Omni-directional
Scanning Distance:
18"

Interfaces/Ports

Host Interface:
Multi-interface

Battery Information

Number of Batteries Supported:
Not Applicable
Battery Size Supported:
Not Applicable
Battery Chemistry:
Not Applicable

Physical Characteristics

Color:
Twilight Black
Height:
8"
Width:
5.4"
Depth:
3.4"
Weight (Approximate):
12 oz

Miscellaneous

Additional Information:
Supported Interface: USB RS-232 RS-485 (IBM 46xx Protocols) KBW interface
Green Compliant:
Yes
Green Compliance Certificate/Authority:
RoHS
