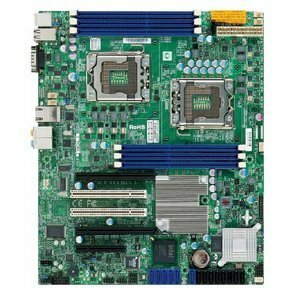

Supermicro X8DAL-3 Workstation Motherboard - Intel Chipset

Computer > Computer Components > Motherboards

MBD-X8DAL-3-O - Supermicro X8DAL-3 Workstation Motherboard - Intel - Socket B LGA-1366 - x Retail Pack

Availability: Out of Stock

Mfg Part# MBDX8DAL3O

Please alert me when this product comes back in stock:
Email Address:

Product Information

Reviews

Pros / Cons

Recommended Accessories

This X8DAL-3 Workstation Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance. X8DAL-3 Workstation Board supports the Intel 5500 Series Processor platform, the first dual-processing platform that supports the Intel QuickPath Interconnect (QPI) Technology, providing the next generation point-to-point system interface to replace the current Front Side Bus.

General Information

Manufacturer:
Supermicro Computer, Inc
Manufacturer Part Number:
MBD-X8DAL-3-O
Manufacturer Website Address:
www.supermicro.com
Brand Name:
Supermicro
Product Model:
X8DAL-3
Product Name:
X8DAL-3 Workstation Motherboard
Package Type:
Retail
Product Type:
Workstation Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Chipset Model:
5500
Total Processor Supported:
2
Processor Technology:
Enhanced SpeedStep Technology
Processor Socket:
Socket B LGA-1366
Processor Supported:
Xeon Dual-Core
QuickPath Interconnect:
6.40 GT/s
64-bit Processing:
Yes

Memory

Number of Memory Slots:
6
Maximum Memory:
24 GB
Memory Standard:
DDR3-800/PC3-6400
Memory Technology:
DDR3 SDRAM

I/O Controller

Controller Type:
Serial ATA/300
RAID Supported:
Yes
RAID Levels:
0

Audio

Sound Controller Manufacturer:
Realtek
Sound Controller Model:
ALC883
Audio Channels:
7.1

Network & Communication

Gigabit Ethernet:
Yes

I/O Expansions

Number of Total Expansion Slots:
5
Number of PCI Slots:
2
Total Number of PCI Express Slots:
3
Number of PCI Express x4 Slots:
2
Number of PCI Express x16 Slots:
1

Storage

Number of SATA Interfaces:
6
Number of SAS Interfaces:
8

Back Panel Interfaces

Total Number of USB Ports:
4
Number of USB 2.0 Ports:
4
Serial Port:
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone Port:
Yes
S/PDIF:
Yes
Number of S/PDIF Out Ports:
1
Network (RJ-45):
Yes
PS/2 Port:
Yes
Number of PS/2 Ports:
2

Onboard Interfaces

Total Number of Onboard USB Ports:
2
Onboard LEDs Header:
Yes
Onboard Audio Header:
Yes

Physical Characteristics

Form Factor:
ATX
Width:
12"
Depth:
10"

Miscellaneous

Package Contents:
X8DAL-3 Workstation Board 8 x 57.5cm SATA Flat S-S PBF 1 x Support Disc 1 x I/O Shield 1 x User Manual
Additional Information:
System BIOS: 32Mb SPI Flash EEPROM with AMI BIOS Plug and Play (PnP) PCI 2.2 ACPI up to 3.0 USB Keyboard Support
Green Compliant:
Yes
Green Compliance Certificate/Authority:
RoHS
