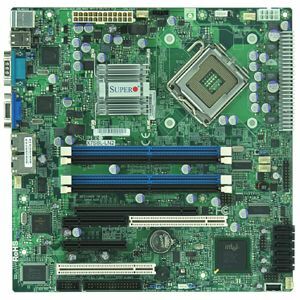

X7SBL-LN1 - Supermicro X7SBL-LN1 Desktop Motherboard - Intel 3200 Chipset - Socket T LGA-775
Supermicro X7SBL-LN1 Desktop Motherboard - Intel 3200 Chipset - Socket T LGA-775
Bookmark and Share
SUPERMICRO
Availability: Out of Stock
Mfg Part# X7SBLLN1
Please alert me when this product comes back in stock:
Email Address:E-Mail Signup
HACKER SAFE certified sites prevent over 99.9% of hacker crime.
BBB.org
Right Side Pixel
Bottom Pixel
Advertisement
X7SBL-LN1 Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

General Information
  • Manufacturer:
    Supermicro Computer, Inc
  • Manufacturer Part Number:
    X7SBL-LN1
  • Manufacturer Website Address:
    www.supermicro.com
  • Brand Name:
    Supermicro
  • Product Model:
    X7SBL-LN1
  • Product Name:
    X7SBL-LN1 Desktop Motherboard
  • Product Type:
    Desktop Motherboard
Processor & Chipset
  • Chipset Manufacturer:
    Intel
  • Chipset Model:
    3200
  • Total Processor Supported:
    1
  • Processor Technology:
    Enhanced SpeedStep Technology
  • Processor Socket:
    Socket T LGA-775
  • Processor Supported:
    Core 2 Duo
  • Front Side Bus:
    1333 MHz
Memory
  • Number of Memory Slots:
    4
  • Maximum Memory:
    8 GB
  • Memory Standard:
    DDR2-800/PC2-6400
  • Memory Technology:
    DDR2 SDRAM
I/O Controller
  • Controller Type:
    Serial ATA/300
Video
  • Onboard Video:
    Yes
  • Graphics Controller Manufacturer:
    XGI
  • Graphics Controller Model:
    Volari Z9s
  • Graphics Controller Memory:
    32 MB
Network & Communication
  • Gigabit Ethernet:
    Yes
I/O Expansions
  • Number of Total Expansion Slots:
    4
  • Number of PCI Slots:
    2
  • Total Number of PCI Express Slots:
    2
  • Number of PCI Express x4 Slots:
    1
  • Number of PCI Express x8 Slots:
    1
Storage
  • Number of SATA Interfaces:
    6
Back Panel Interfaces
  • Total Number of USB Ports:
    2
  • Number of USB 2.0 Ports:
    2
  • Serial Port:
    Yes
  • VGA:
    Yes
  • Network (RJ-45):
    Yes
Onboard Interfaces
  • Total Number of Onboard USB Ports:
    1
  • Onboard LEDs Header:
    Yes
Physical Characteristics
  • Form Factor:
    Micro ATX
  • Width:
    9.6"
  • Depth:
    9.6"
Miscellaneous
  • Additional Information:
    ROHS Compliant Dual Channel memory supported Chipsets: Intel 3200 ICH9R BIOS Features: 8Mb Flash EEPROM with Phoenix BIOS Plug and Play (PnP) DMI 2.3 support PCI 2.2 ACPI 1.0/2.0 USB Keyboard support SMBIOS 2.3 Hardware Monitoring: Monitors for CPU Cores +1.8V, +3.3V, +5V, 12V, 3.3V Standby, 5V Standby, VBAT CPU 3-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V Adjustable CPU clock frequency ratio Total of six 4-pin fan headers 6 fans with tachometer monitoring Status monitor with firmware speed control Low noise fan speed control Status monitor for on/off control Support 3-pin fans (without speed control) Pulse Width Modulated (PWM) fan connector Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI CPU / System Overheat LED Suspend state indicator LED Standby Power alert LED Chassis Intrusion Detection Chassis Intrusion Header ACPI Features: Slow blinking LED for suspend state indicator BIOS support for USB keyboard Main switch override mechanism Internal/external modem ring-on Support CD Contents: Drivers Software for Intel 3200 chipset utilities
