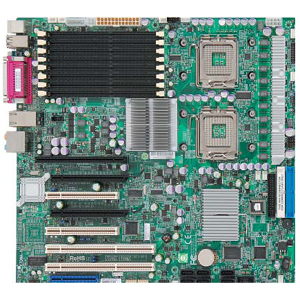

Supermicro X7DWA-N Server Motherboard - Intel 5400 Chipset

Computer > Computer Components > Motherboards

MBD-X7DWA-N-O - Supermicro X7DWA-N Server Motherboard - Intel 5400 Chipset - Socket J LGA-771

Availability: Out of Stock

Mfg Part# MBDX7DWANO

Please alert me when this product comes back in stock:
Email Address:

Product Information

Reviews

Pros / Cons

X7DWA-N Server Board designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

General Information

Manufacturer:
Supermicro Computer, Inc
Manufacturer Part Number:
MBD-X7DWA-N-O
Manufacturer Website Address:
www.supermicro.com
Brand Name:
Supermicro
Product Model:
X7DWA-N
Product Name:
X7DWA-N Server Motherboard
Product Type:
Server Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Chipset Model:
5400
Total Processor Supported:
2
Processor Technology:
Enhanced SpeedStep Technology
Processor Socket:
Socket J LGA-771
Processor Supported:
Xeon
Front Side Bus:
1600 MHz

Memory

Number of Memory Slots:
8
Maximum Memory:
64 GB
Memory Standard:
DDR2-533/PC2-4200
Memory Technology:
DDR2 SDRAM

I/O Controller

Controller Type:
Floppy Controller

Audio

Sound Controller Manufacturer:
Realtek
Sound Controller Model:
ALC 883
Audio Channels:
7.1

Network & Communication

Gigabit Ethernet:
Yes

I/O Expansions

Number of Total Expansion Slots:
6
Number of PCI Slots:
2
Number of PCI-X Slots:
2
Total Number of PCI Express Slots:
2
Number of PCI Express x16 Slots:
2

Storage

Number of IDE Interfaces:
1
Number of SATA Interfaces:
6

Back Panel Interfaces

Total Number of USB Ports:
4
Number of USB 2.0 Ports:
4
Parallel Port:
Yes
Serial Port:
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone Port:
Yes
Network (RJ-45):
Yes

Onboard Interfaces

Total Number of Onboard USB Ports:
1
Total Number of Onboard FireWire/i.LINK Ports:
2
Onboard LEDs Header:
Yes

Physical Characteristics

Form Factor:
Extended ATX
Width:
13"
Depth:
12"

Miscellaneous

Additional Information:
Dual Channel memory supported Chipsets: Intel 5400 (Seaburg) ESB2 BIOS Features: 8Mb Flash EEPROM with Phoenix BIOS Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 1.0 / 2.0 USB Keyboard support Hardware Monitoring: Monitors for CPU Cores, +1.8V, +3.3V, +5V, 12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V Total of eight 4-pin fan headers supporting up to 8 fans 8x fans with tachometer status monitoring Status monitor for speed control Support 3-pin fans (w/ speed control) Low noise fan speed control Pulse Width Modulated (PWM) fan connectors Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 8x fan connectors PC temperature sensing logic PECI Thermal Monitor 2 (TM2) support CPU / System Overheat LED Suspend-state indicator LED Chassis intrusion detection Chassis intrusion header SDDC Support Onboard voltage monitors for CPU cores, chipset voltage, memory voltage, +1.8V, +3.3V, +5V, +12V, 12V, 3.3V standby, 5V standby and VBAT Fan status monitor with firmware speed on/off control CPU/chassis temperature monitors Platform Environment Control Interface (PECI) CPU slow-down on temperature overheat CPU thermal trip support for processor protection Power-up mode control for recovery from AC power loss Auto-switching voltage regulator for CPU core System overheat LED and control Chassis intrusion detection System resource alert ACPI Features: Slow blinking LED for suspend state indicator Main switch override mechanism Support CD Contents: BIOS flash upgrade utility Device drivers
Green Compliant:
Yes
Green Compliance Certificate/Authority:
RoHS
