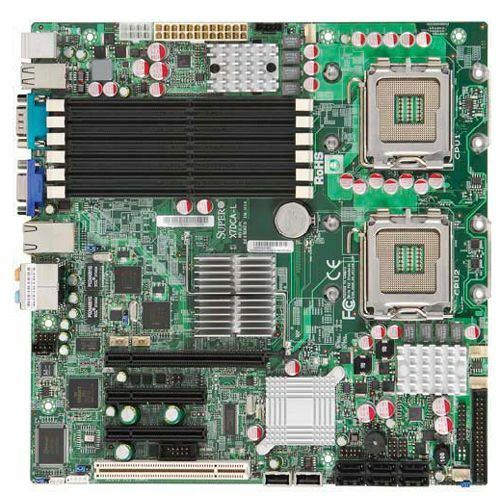

Supermicro X7DCA-L Server Motherboard - Intel 5100 Chipset

Computer > Computer Components > Motherboards

MBD-X7DCA-L-O - Supermicro X7DCA-L Server Motherboard - Intel Chipset - Socket J LGA-771 - Retail Pack

Availability: Out of Stock

Mfg Part# MBDX7DCALO

Please alert me when this product comes back in stock:
Email Address:

Product Information

Reviews

Pros / Cons

X7DCA-L Server Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

General Information

Manufacturer:
Supermicro Computer, Inc
Manufacturer Part Number:
MBD-X7DCA-L-O
Manufacturer Website Address:
www.supermicro.com
Brand Name:
Supermicro
Product Model:
X7DCA-L
Product Name:
X7DCA-L Server Motherboard
Package Type:
Retail
Product Type:
Server Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Chipset Model:
5100
Total Processor Supported:
2
Processor Technology:
Enhanced SpeedStep Technology
Processor Socket:
Socket J LGA-771
Processor Supported:
Xeon Dual-Core
Front Side Bus:
1066 MHz
64-bit Processing:
Yes

Memory

Number of Memory Slots:
6
Maximum Memory:
48 GB
Memory Standard:
DDR2-533/PC2-4200
Memory Technology:
DDR2 SDRAM

I/O Controller

Controller Type:
Floppy Controller
RAID Supported:
Yes
RAID Levels:
1+0

Video

Onboard Video:
Yes
Graphics Controller Manufacturer:
XGI
Graphics Controller Model:
Z9s
Graphics Controller Memory:
32 MB

Audio

Sound Controller Manufacturer:
Realtek
Sound Controller Model:
ALC883
Audio Channels:
7.1

Network & Communication

Gigabit Ethernet:
Yes

I/O Expansions

Number of Total Expansion Slots:
4
Number of PCI Slots:
1
Total Number of PCI Express Slots:
3
Number of PCI Express x8 Slots:
2
Number of PCI Express x16 Slots:
1

Storage

Number of SATA Interfaces:
6

Back Panel Interfaces

Total Number of USB Ports:
4
Number of USB 2.0 Ports:
4
Serial Port:
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone Port:
Yes
VGA:
Yes
Network (RJ-45):
Yes

Onboard Interfaces

Total Number of Onboard USB Ports:
1
Onboard LEDs Header:
Yes

Physical Characteristics

Form Factor:
Micro ATX
Width:
10.0"
Depth:
10.0"

Miscellaneous

Package Contents:
X7DCA-L Server Board Motherboard Manual 1 x Retention Kit 1 x ATX Floppy Cable 6 x 2ft. Amphenol, SATA Cable 1 x CD 1 x Motherboard I/O Shield
Additional Information:
Supports Dual channel memory bus System BIOS: BIOS Type: 16Mb SPI Flash with Phoenix BIOS BIOS Features: Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 1.0/2.0/3.0 USB Keyboard support Hardware BIOS Virus protection SMBIOS 2.3 Management: Software: Super Doctor III Watch Dog NMI Power Configurations: ACPI Power Management Wake-On-Ring (WOR) header Wake-On-LAN (WOL) header CPU Fan auto-off in sleep mode Power-on mode for AC power recovery Internal/External modem remote ring-on PC Health Monitoring: CPU: Monitors for CPU Cores,+1.5V, +3.3V, +5V, 12V, +5 Standby, VBAT CPU Core 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V FAN: Six 4-pin fan headers 6x fans with tachometer monitoring Status monitor for speed control Status monitor for on/off control Support for 3-pins (w/o speed control) Low noise fan speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment CPU thermal trip support Thermal Control for 6x Fan Connectors PSU I2C temperature sensing logic LED: CPU/System Overheat LED Suspend-state Indicator LED +5V Standby alert LED Other Features: Chassis Intrusion Detection Chassis Intrusion Header ACPI Features: Slow blinking LED for suspend state indicator Main switch override mechanism ACPI Power Management Power-on mode for power recovery CD/Diskette Utilities: BIOS fl ash upgrade utility and device drivers
Green Compliant:
Yes
Green Compliance Certificate/Authority:
RoHS
