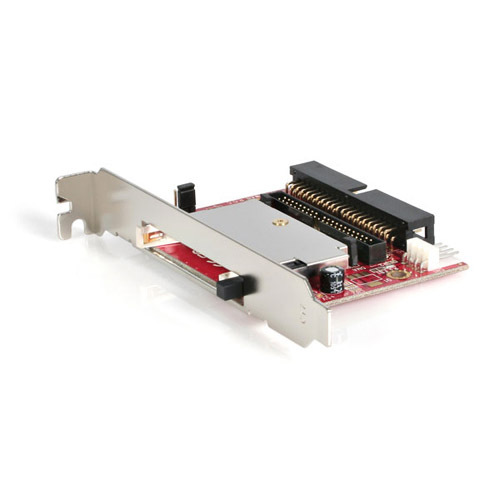

This Compact Flash to IDE adapter connects to any standard 40 pin or 44 pin IDE connection on a desktop computer, allowing a Compact Flash card to be used as bootable storage in place of an IDE hard drive! A Do-it-yourself SSD solution, the CF to IDE adapter can be powered by a 4-pin floppy connector or through a 44-pin IDE port, and can be mounted to the computer rear panel using the included PCI bracket - allowing Compact Flash, Compact Flash 2, or IBM MicroDrive media to be inserted into the CF slot. The adapter function is completely transparent to the operating system, and jumper settings are provided allowing you to designate the installed MicroDrive or CF cards to act as a Master or Slave drive.
Manufacturer:
StarTech.com
Manufacturer Part Number:
PLATEIDE2CF
Manufacturer Website Address:
www.startech.com
Brand Name:
StarTech.com
Product Name:
IDE to CF Adapter Card with a PCI Bracket
Product Type:
Flash Reader
Media Slots:
1
Media Supported:
Microdrive
Host Interface:
IDE/EIDE
Interfaces:
1 x 44-pin IDE/EIDE
Height:
6.2"
Width:
1.8"
Length:
8.6"
Form Factor:
Internal Hot-pluggable
Weight (Approximate):
2.12 oz
