Manufacturer Part Number

SMC7004VBR

Product Name

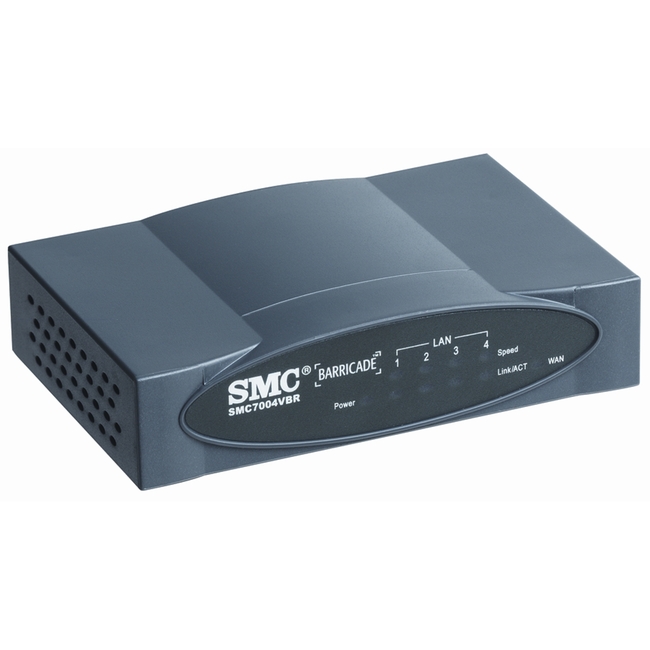

Barricade SMC7004VBR Broadband Router

Product Type

Broadband Router

Dimensions

1.3" Height x 5.2" Width x 3.4" Depth

Standard Warranty

Lifetime Limited

Fast Ethernet Port

Yes

Manufacturer

SMC Networks, Inc

Manufacturer Website Address

www.smc.com

Product Line

Barricade

Marketing Information

The Barricade Cable/DSL Broadband Router (SMC7004VBR) is the ideal networking solution for home and business users that are looking for a complete networking solution. This platform independent multi-function router combines a 4-port 10/100 Mbps dual speed switch, full-featured SPI firewall, and network management system into one convenient device. The Barricade supports various network protocols, such as TCP/IP and NetBeui, while also providing support for VPN connections with PPTP, L2TP, and IPSec pass-through.

Connectivity Media

Twisted Pair 10/100Base-TX

Protocols

PPPoE

Input Current

2A

Temperature

-20 °C (-4 °F) to 70 °C (158 °F) Storage

Additional Information

NAT: Maximum 253 Users Firewall: NAT firewall and SPI firewall Upgrade method: Web-based Features: EZ 3-Click Installation Wizard. User-friendly Web-based management. Connects to a Cable/xDSL modem. Simultaneous Internet access for up to 253 PCs on the LAN using only one IP address. Built-in Stateful Packet Inspection (SPI) firewall security. 4-port Auto-MDI-MDIX 10/100 Mbps switch versatility plus 1 10/100 Mbps port for WAN connection. URL blocking to limit access to certain websites by entering a full URL address or a keyword of the website. Access control based on IP address filtering,MAC address filtering, date and time of the day. Hacker prevention and logging capability with email alerts prevent common hacker attacks. Benefits: EZ 3-Click Installation Wizard is a new and improved way to install your Barricade. In 3 mouse-clicks, you will be connected to the Internet. Web-based management allows for configuration through any networked PC's web browser. All-in-one solution provides switching, IP sharing, and firewall security in one single device. Allows a single broadband Internet connection to be used by multiple computers. Advanced Stateful Packet Inspection (SPI) firewall monitors and analyze all the information entering your network. It also protects your network from Denial of Service (DoS) attacks that will disrupt network activities. IP routing supports wide range of popular applications. Parental control to protect your family with URL blocking capability. Hacker attack monitoring and email alerts allow the detection of malicious access.

Certifications & Standards

Standards: 802.3 802.3u Compliance: FCC CE UL

Dimensions

1.3" Height x 5.2" Width x 3.4" Depth

Weight

0.42 lb

Standard Warranty

Lifetime Limited

Number of Ports

5

Interfaces/Ports

1 x RJ-45 10/100Base-TX WAN
