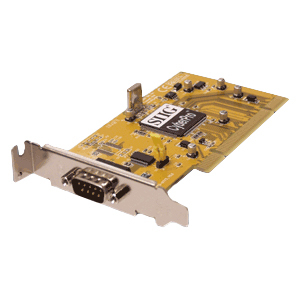

Siig Low Profile PCI-1S+DOS

Call us at 888-566-NERD(6373)

Home

Your Account

Help

Your Cart: 121 Item(s): $37022.93 View Cart

SIIG INC.

Price: $41.99

Availability: 21 In Stock

Mfg Part# LPP01D11S6

Quantity:

Product Information

A low profile form factor PCI card made for space constrained system designs Supports 32-/64-bit, 3.3V/5V PCI and PCI-X slots One high-speed 16550 UART serial port (9-pin) supports data rate up to 230 Kbps Will work as standard RS232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.). Configurable via jumpers with silk-screened settings on PCB Includes support for DOS, Windows 95/98/98SE/ME/2000/XP/Server 2003, & Linux Kernel 2.4.x or later

General Information

Manufacturer:
Siig, Inc
Manufacturer Part Number:
LP-P01D11-S6
Manufacturer Website Address:
www.siig.com
Brand Name:
Siig
Product Name:
Low Profile PCI-1S+DOS
Packaged Quantity:
1
Packing:
Box
Package Type:
Bulk
Product Type:
Serial Adapter

Technical Information

Host Interface:
PCI
Data Transfer Rate:
Up to 230Kbps Serial Port
Buffer:
32Byte
Baud Rate:
230Kbps
UART Type:
16550 Standard
IRQ:
IRQ sharing
Controller Type:
CyberPro
Platform Support:
Linux

Interfaces/Ports

Ports:
1 x 9-pin DB-9 Female RS-232 Serial

Power Description

Input Voltage:
3.3 Vto 5 V

Physical Characteristics

Form Factor:
Low-profile Plug-in Card
Shipping Dimensions:
8.62" Width x 6.31" Height x 1.5" Depth
Shipping Weight:
0.8 lb

Miscellaneous

Package Contents:
Low Profile PCI-1S+DOS card Driver CD User's manual
Additional Information:
Regulatory approval(s): FCC Class B (DoC) & CE Chip: CyberPro Bus type: 32-bit PCI Port type: One 9-pin RS232 serial port Built-in 32-byte FIFO buffers dramatically increase data transmit/receive speed, especially under Windows multitasking environment 4-layer PCB board: separate layers for data & grounding. Greatly reduces signal noise & loss. Delivers more reliable high-speed data transfers Enhanced bracket design to prevent bending. Connected to PCB with washered screws for a more secure connection Supports 3.3V operation with 5V tolerance Conforms to PCI v2.2 universal card standard. PCI-X & 64-bit compatible Supports PME # (Power Management Event). Allows device to request a change in system power state (wake up system) Use SMT (Surface Mount Technology) type electrolytic capacitor. Low ESR (Equivalent Series Resistance) aluminum electrolytic capacitor. Offers much improved noise suppression & achieves higher levels of performance/reliability Use SMT (Surface Mount Technology) type crystal. Offers cleaner design than traditional DIP-type crystal. Provides greatly improved grounding, which reduces EMI emission & improves performance/reliabiilty
System Requirements:
Pentium or equivalent computer with an available 32-/64-bit PCI or PCI-X slot DOS, Windows 95/98/98SE/ME/2000/XP/Server 2003 Linux Kernel 2.4.x or later
Certifications & Standards:
FCC Class B, CE, RoHS
