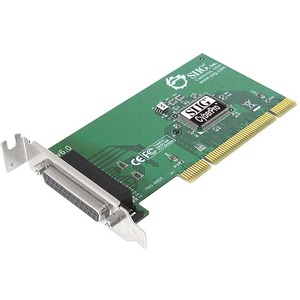

SIIG's Low Profile PCI-1P adapter is a cost effective and reliable solution for adding one high-speed, 25-pin parallel port to your PCI-enabled desktop computer for connecting additional parallel port device. It supports EPP/ECP, BPP (bi-directional), and SPP (standard) parallel port modes and PCI IRQ sharing to reduce IRQ conflicts. This single parallel port adapter comes with an enhanced bend-resistant bracket to ensure a more secure connection to the system. Designed to work with 32-/64-bit, 3.3V/5V PCI and PCI-X slots, the Low Profile PCI-1P adapter is the ideal solution for low profile system chassis installations to enable additional parallel port device connections. The Low Profile PCI-1P fully conforms to PCI V2.2 universal card standard and IEEE 1284-1994 Parallel Port Standards. It is also FCC Class B (DoC) & CE regulatory approved and RoHS-compliant. The Low Profile PCI-1P is fully compatible with a wide variety of Windows operating systems and is backed by SIIG's limited lifetime warranty.
Manufacturer:
SIIG, Inc
Manufacturer Part Number:
LP-P01011-S6
Manufacturer Website Address:
www.siig.com
Brand Name:
SIIG
Product Model:
LP-P01011-S6
Product Name:
LP-P01011-S6 1-port PCI Parallel Adapter
Product Type:
Parallel Adapter
Host Interface:
PCI-X
Parallel Port Modes:
EPP
Platform Supported:
PC
Package Contents:
LP-P01011-S6 1-port PCI Parallel Adapter Low Profile PCI-1P Driver CD User's Manual
System Requirements:
Pentium(r) or equivalent computer with an available 32-/64-bit PCI or PCI-X slot Windows(r) 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000 / NT 4.0 / ME / 98SE / 98 / 95
Compatibility:
Can be installed in 32-/64-bit, 3.3v/5v PCI and PCI-X slot Full support for Windows-based software Low profile adapter for low profile chassis installation Conforms to PCI v2.2 universal card standard. PCI-X & 64-bit compatible Compliant with IEEE 1284-1994 parallel port standard Supports ECP/EPP/PS2/SPP Parallel Port modes PCI IRQ sharing feature reduces IRQ conflicts Enhanced bracket design to prevent bending. Connected to PCB with washered screws for a more secure connection
Green Compliant:
Yes
Green Compliance Certificate/Authority:
RoHS
Country of Origin:
China
Standard Warranty:
Lifetime Limited
