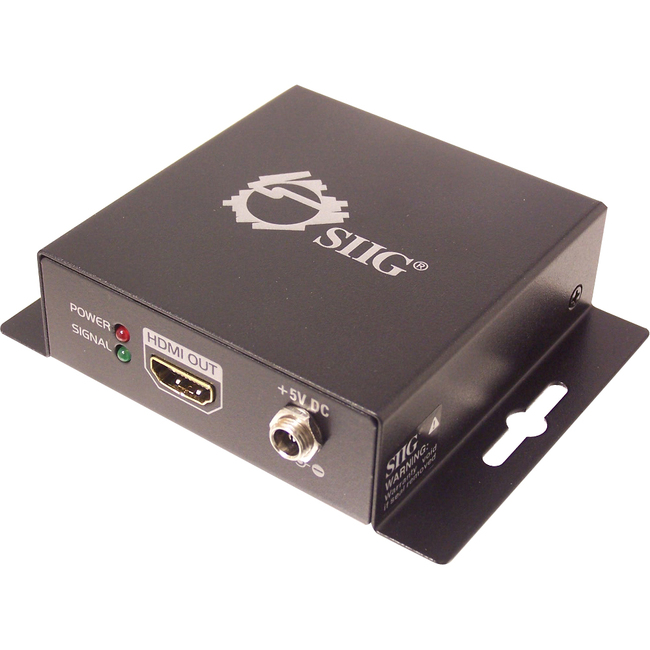

SIIG's HDMI over Single Coax Extender with IR is designed to extend HDMI video/audio transmission over one coaxial cable with bi-directional IR support. It supports 7.1-channel audio and digital stereo audio and extends transmission distances of up to 394ft at full HD (1080p 24-bit color depth). The HDMI over Single Coax Extender with IR is the cost-effective HDMI Extender solution enabling you to transmit high quality video and audio signals from DVD players, Blu-ray Disc player, PS3, PC, and many more to a distant display device at the minimal cost.
The HDMI over Single Coax Extender with IR is fully compliant with industry standards including HDMI and HDCP. In addition, it is FCC and CE regulatory approved, meets RoHS hazardous materials standards, and is backed by SIIG's limited 3-year warranty.
Manufacturer:
SIIG, Inc
Manufacturer Part Number:
CE-H20Z11-S1
Manufacturer Website Address:
http://www.siig.com
Brand Name:
SIIG
Product Name:
HDMI over Single Coax Extender with IR
Product Type:
Video Extender
Connectivity Technology:
Wired
Number of Input Devices Supported:
1
Number of Output Devices Supported:
1
Maximum Operating Distance:
394 ft
HDMI In:
Yes
HDMI Out:
Yes
Number of HDMI Inputs:
1
Number of HDMI Outputs:
1
Media Type Supported:
Coaxial
Material:
Metal
Height:
3.1"
Width:
3.3"
Depth:
1.1"
Form Factor:
Wall Mountable
Weight (Approximate):
8.80 oz
Package Contents:
HDMI Over Single Coax Extender with IR2 x Power Adapters2 x IR Cables (Blaster & Receiver)Screw KitUser's Manual
Additional Information:
Graphics resolution: maximum 1080p
Certifications & Standards:
FCCCE
Green Compliant:
Yes
Green Compliance Certificate/Authority:
RoHS
Country of Origin:
Taiwan
Limited Warranty:
3 Year Limited
