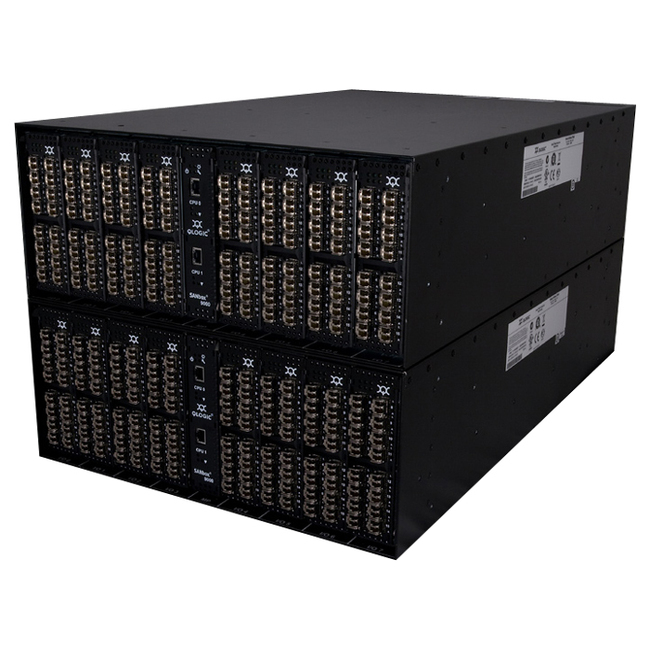

The QLogic Stackable Modular Fibre Channel Switch is ideal for cost sensitive, business-critical, open system environments that require a high-density, high-availability switch platform for their datacenter core. The QLogic 9000 Series pioneers a number of industry firsts: stackable for simple, cost-effective scalability, 4U chassis for smaller footprint, and management tools included at no charge.
Manufacturer:
QLogic Corp
Manufacturer Part Number:
SB9100-00B
Manufacturer Website Address:
www.qlogic.com
Brand Name:
QLogic
Product Line:
SANbox
Product Series:
9000
Product Model:
SB9100
Product Name:
SANbox SB9100 Fibre Channel Switch
Product Type:
Fibre Channel Switch
Fabric Latency:
< 300 ns No Contention
Switching Method:
Cut-through Routing @ 4 Gbps
Maximum Frame Size:
2.1 KB Payload
Scalability:
Up to 128 Port Per Chassis 4Gb
Fabric Supported:
E_Port
Topology:
Public Loop
Fibre Channel Class Supported:
Class F
Data Transfer Rate:
4.25 Gbps Fibre Channel Per Port
Performance:
6.64 Gbps Point-to-Point Bandwidth Full-duplex
Laser Type Supported:
Short-wavelength Laser
Connectivity Media:
50/62.5 um Multi-mode Fiber
Distance Supported:
5.18 Mile Multi-mode Fiber
Number of Fiber Channel Ports:
8
Interfaces/Ports Details:
4 x RJ-45 10/100Base-T Management
Expansion Slots:
8 x Expansion Slot
Processor:
1 x Power PC 800 MHz
