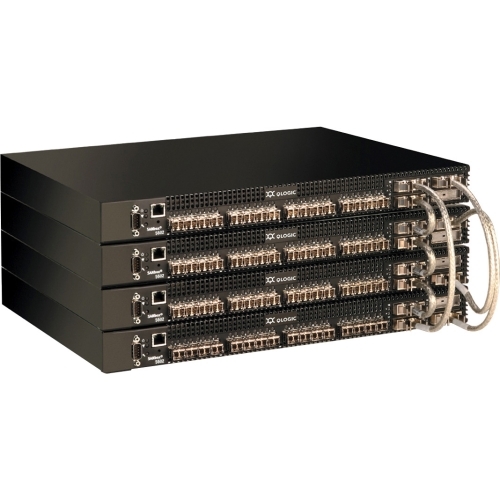

SB5602-16A-E - QLogic SANbox SB5602 Fiber Channel Switch
QLogic SANbox SB5602 Fiber Channel Switch
Bookmark and Share
QLOGIC
Price: $5031.99
Availability: 1 In Stock
Mfg Part# SB560216AE
Quantity:

HACKER SAFE certified sites prevent over 99.9% of hacker crime.
BBB.org
Right Side Pixel
Bottom Pixel
Advertisement
SANbox 5602 ets you start small, then scale with your company's needs using state of the art 10Gb Fibre Channel "stacking" technology typically found only in high end director products. As proven in the Ethernet world, stackable architectures cut costs and increase stability by providing a dedicated, highly expandable transport for aggregate ISL traffic eliminating the disruption, port waste, and management hassles associated with using regular device ports for inter switch links. It's like having the performance and hands off convenience of an expensive chassis switch without the cost overhead of a chassis.

General Information
  • Manufacturer:
    QLogic Corp
  • Manufacturer Part Number:
    SB5602-16A-E
  • Manufacturer Website Address:
    www.qlogic.com
  • Brand Name:
    QLogic
  • Product Line:
    SANbox
  • Product Series:
    5600
  • Product Model:
    SB5602
  • Product Name:
    SANbox SB5602 Fiber Channel Switch
  • Product Type:
    Fibre Channel Switch
Technical Information
  • Fabric Latency:
    < 400 ns
  • Switching Method:
    Cut-through Routing
  • Maximum Frame Size:
    2.1 KB Payload
  • Stackable:
    96 Port
  • Fabric Supported:
    G_Port
  • Topology:
    Point-to-Point
Media & Performance
  • Data Transfer Rate:
    4.24 Gbps Fibre Channel
  • Laser Type Supported:
    Short-wavelength Laser
  • Connectivity Media:
    9 um Single-mode Fiber
  • Distance Supported:
    6.21 Mile Single-mode Fiber @ 2 Gbps
Interfaces/Ports
  • Number of Fiber Channel Ports:
    16
  • Interfaces/Ports Details:
    1 x RS-232 Serial Management
I/O Expansions
  • Expansion Slots:
    16 x Expansion Slot
  • Slot Details:
    16 x SFP (mini-GBIC) Unoccupied
Management & Protocols
  • Protocols:
    FC-AL
  • Management:
    QuickTools web applet Enterprise Fabric Suite 2007 Command Line Interface API, GS-4 Management Server (including FDMI), SNMP, RADIUS, FTP, TFTP, SMI-S
Power Description
  • Number of Power Supplies:
    2
  • Redundant Power Supply:
    Yes
  • Power Supply Form Factor:
    Plug-in Module
Physical Characteristics
  • Form Factor:
    1U External
  • Dimensions:
    1.7" Height x 17.0" Width x 20.0" Depth
  • Weight (Approximate):
    15.00 lb
