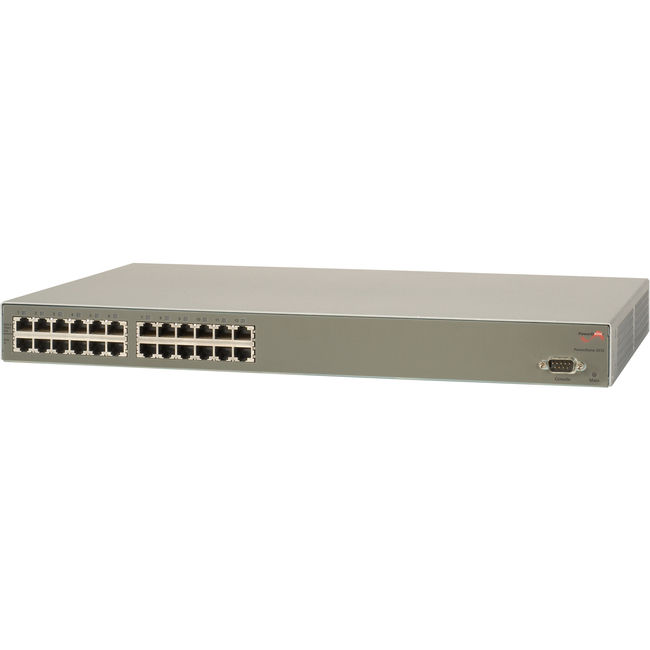

PowerDsine 3512 Power over Ethernet (PoE) Midspan offers a cost effective, fully IEEE 802.3af compliant solution to upgrade existing infrastructure with PoE. PowerDsine 3512 allows IP telephones, wireless LAN access points, security network cameras and IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. With PoE, data and power flow smoothly and safely over a single LAN cable with no interference. A PoE Midspan (PoE injector) resides between the Ethernet switch and the data terminals, delivering data, along with power, from switch to powered devices. It is a highly effective means for injecting power into existing LAN cables. PowerDsine 3512 Midspan, fully comply with the IEEE 802.3af PoE definition standard, provide a minimum of 15.4 Watts of power through each port and ensure safe operation of any standard PoE data terminal.
Manufacturer:
Microsemi Corporation
Manufacturer Part Number:
PD-3512/AC
Manufacturer Website Address:
www.microsemi.com
Brand Name:
PowerDsine
Product Series:
3500
Product Model:
3512
Product Name:
PowerDsine 3512 Power over Ethernet Midspan
Product Type:
PoE Injector Hub
Input Voltage:
240 V AC
Input Voltage Range:
100 V AC to 240 V AC
Output Voltage:
48 V DC
Input Current:
2 A @ 220 V AC
Frequency:
60 Hz
Output Power:
200 W Total
Output Ports:
12 x RJ-45 10/100Base-TX
Additional Information:
Console Port: DB-9 (Male)
Certifications & Standards:
IEEE 802.3af compliant CE Electromagnetic Emission & Immunity: FCC Part 15, Class B with FTP cabling EN 55022 Class B,(Emissions) EN 55024 (Immunity) VCCI Safety Approvals: UL/cUL Per EN 60950 GS Mark Per EN 60950
Green Compliant:
Yes
Green Compliance Certificate/Authority:
WEEE
