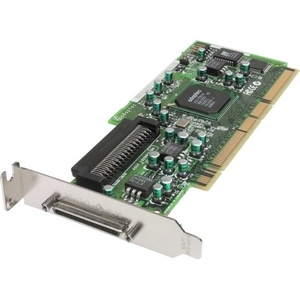

Adaptec 29320ALP-R Single Channel Ultra 320 SCSI RAID Controller

Computer > Enterprise Computing > Storage SCSI Controllers

Availability: Out of Stock

Mfg Part# 2060100R

Please alert me when this product comes back in stock:
Email Address:

Product Information

Reviews

Pros / Cons

The Adaptec SCSI Card 29320ALP-R is a low-profile, 64-bit 133 MHz PCI-X, single-channel Ultra320 SCSI card with integrated HostRAID optimized for rack-mount servers. The Adaptec 29320ALP-R is a low-cost RAID 0, 1 and 10 solution. In addition, the Adaptec 29320ALP-R offers new drivers for HostRAID, both Linux and Windows Server 2003, as well as the same browser-based management tool used by Adaptec RAID products. The Adaptec 29320ALP-R provides data protection at the fastest SCSI speeds available up to 320 MByte/sec, ideal for mainline storage, streaming video and audio, and other bandwidth-intensive applications.

General Information

Manufacturer:
Adaptec, Inc
Manufacturer Part Number:
2060100-R
Manufacturer Website Address:
www.adaptec.com
Brand Name:
Adaptec
Product Model:
29320ALP-R
Product Name:
29320ALP-R Single Channel Ultra 320 SCSI RAID Controller
Product Type:
SCSI Controller

Technical Information

Host Interface:
PCI-X
Data Transfer Rate:
Up to 320 MBps
Interfaces:
Ultra320 SCSI
SCSI Protocols:
Ultra320 SCSI
RAID Supported:
Yes
RAID Levels:
1
Drive Supported:
Up to 15 x Physical
Platform Supported:
Solaris

Interfaces/Ports

Ports:
1 x 68-pin VHDCI Ultra320 SCSI LVD - SCSI External

Software

Software Included:
Adaptec HostRAID, EZ-SCSI software

Reliability

MTBF:
1570000 Hour

Power Description

Input Voltage:
5 V DC
Input Current:
628 mA @ 3.3 V DC

Physical Characteristics

Height:
2.5"
Width:
6.6"
Form Factor:
Low-profile Plug-in Card

Miscellaneous

Package Contents:
1 x 29320ALP-R Single Channel Ultra 320 SCSI RAID Controller 1 x 5-position Ultra320 SCSI LVD cable with terminator Supported operating systems drivers
System Requirements:
Intel PC or equivalent with available PCI slot (2.2 compliant)
Compatibility:
Supported Operating Systems: Microsoft Windows Server 2003 (HostRaid and Non HostRaid) Microsoft Windows NT 4.0 (HostRaid and Non HostRaid) Microsoft Windows 2000 (HostRaid and Non HostRaid) Microsoft Windows XP (HostRaid and Non HostRaid) RedHat Linux 8.1 (HostRaid and Non HostRaid) RedHat Linux 9.0 (HostRaid and Non HostRaid) SuSE Linux 8.1 (HostRaid and Non HostRaid) SuSE Linux 8.2 (HostRaid and Non HostRaid) Novell NetWare 5.1 (Non HostRaid) Novell NetWare 6.0 (Non HostRaid) Sun Solaris 9 (x86) (Non HostRaid) SCO / Caldera UnixWare 7.1.3 (Non HostRaid) SCO / Caldera Open Unix 8 (Non HostRaid)
Certifications & Standards:
RoHS
