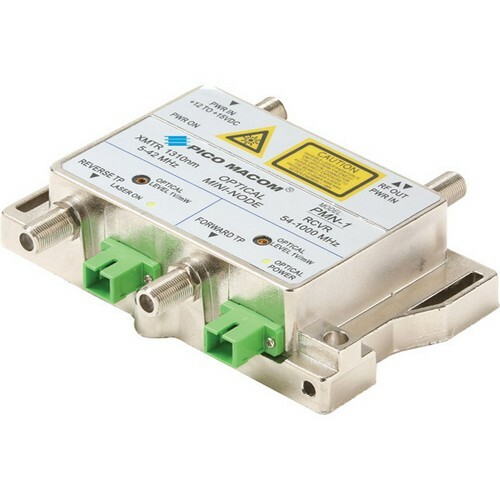

The PMN-1 is a two way optical node with a downstream (forward) signal path and a return signal path. The downstream signal path includes an optical receiver followed by RF circuitry to extract and amplify the signal from the optical receiver into a coax cable connector. The return (reverse) signal path accepts signals from the coax in the 5-42 MHz range and diplexes these signals into the return laser transmitter. The PMN-1 is an ideal platform for delivering video (analog NTSC channels or digital QAM channels or a mixture of both) as well as high-speed data services over today's advanced hybrid fiber/coax (HFC) networks. The small size makes it ideal for installations serving apartment blocks, corporate campus buildings or similar where there is an indoor location and nearby AC power.
Frequency Range:
54 MHz to 1000 MHz
Signal Loss:
16 dB - Input Return
Input Voltage Range:
11.5 V DC to 15.5 V DC
Package Contents:
PMN-1 Signal Splitter AC Adapter
Additional Information:
SC/APC Input and Output for efficient, easy interconnection to your network
Standard Warranty:
1 Year Limited
