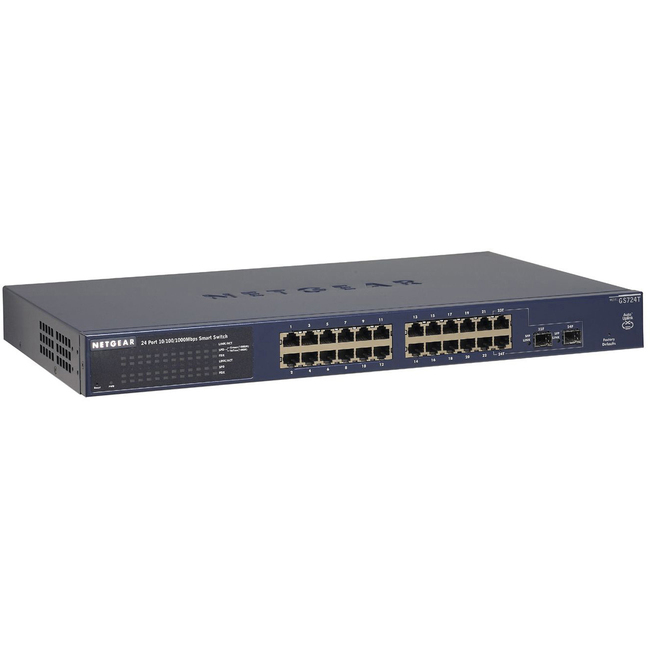

Netgear ProSafe GS724T 24-port Gigabit Smart Switch

NETGEAR

Availability: Out of Stock

Mfg Part# GS724TNA

Product Information

Recommended Accessories

Joining NETGEAR's family of Smart Switches with simple switch management at no extra cost, this 24-port Gigabit switch is high on value and capability. With 24 10/100/1000 Mbps ports, each capable of powering 2000 Mbps of data throughput in full-duplex mode, plus two optional fiber ports, it provides fast backbone and connects servers or power users, delivering large amounts of multimedia, image, and video information in no time at all. Ideal for combining 10, 100, and 1000 Mbps devices it delivers 10/100/1000 automatic speed and full/half-duplex sensing plus Auto Uplink on every port. Two hot-swappable Small Formfactor Pluggable (SFP) GBIC slots provide optional fiber connectivity for greater distance. An intuitive, web-browser interface offers simple switch management, making it a snap to monitor switch performance, configure ports, even set up trunks, VLANs, and prioritization.

General Information

Manufacturer:
Netgear, Inc
Manufacturer Part Number:
GS724TNA
Manufacturer Website Address:
www.netgear.com
Brand Name:
Netgear
Product Line:
ProSafe
Product Model:
GS724T
Product Name:
ProSafe GS724T 24-port Gigabit Smart Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Number of Ports:
24
Gigabit Ethernet Port:
Yes
Interfaces/Ports:
24 x RJ-45 10/100/1000Base-T LAN

Media & Performance

Connectivity Media:
Category 5 UTP
Performance:
48Gbps Bandwidth

I/O Expansions

Number of Expansion Slots:
2
Expansion Slots:
(2 Total) SFP (mini-GBIC)
Modules:
Not Included

Network & Communication

Flow Control:
IEEE 802.3x (Full-duplex)
Switching Method:
Store-and-forward
Layer Support:
2
Address Table:
8K MAC Address - 48bit Per System

Management & Protocols

Manageable:
Yes
Management:
Port setting Web-based configuration, anywhere on the network Configuration Backup/Restore (easy to configure more than one switch) Firmware upgradeable SNMP
Protocols:
SNMP
Security Features:
VLAN: Up to 64 Static VLAN groups Port-based VLAN: Up to 24 groups Password access control and Restricted IP Access List

Controls/Indicators

Status Indicators:
Unit: power Per port: link, activity, speed, duplex

Reliability

MTBF:
126700Hour

Power Description

Input Voltage:
220V AC
Input Voltage Range:
100V AC to 240V AC
Frequency:
50 Hz or 60 Hz
Power Consumption:
40 W @ Maximum

Environmental Conditions

Temperature:
0 C (32.0 F) to 40 C (104.0 F) Operating
Humidity:
95% Maximum Non-condensing Relative Humidity Storage
Altitude:
10000 ft Maximum Operating

Physical Characteristics

Dimensions:
1.7" Height x 17.3" Width x 10.25" Depth
Shipping Dimensions:
5" Height x 15.25" Width x 20" Depth
Weight:
7.1 lb
Shipping Weight:
9.24 lb

Miscellaneous

Package Contents:
24-port Gigabit Smart Switch GS724T Rubber footpads Power cord Rack-mount kit Smart Switch Resource CD Smart Switch Installation guide Warranty/Support information card
Additional Information:
Network latency: Less than 20 us for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission
System Requirements:
Category 5 network cables Network card for each PC
Compatibility:
Network software (e.g., Windows)
Certifications & Standards:
IEEE 802.3: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3x: full-duplex flow control IEEE 802.1Q: Tag VLAN IEEE 802.1p: Class of Service Electromagnetic Compliance: CE mark, commercial FCC Part 15 Class A VCCI Class A EN 55022 (CISPR 22), Class A EN 50082-1 EN 55024 C-Tick Safety Agency Approvals: UL listed (UL 1950)/cUL IEC950/EN60950
