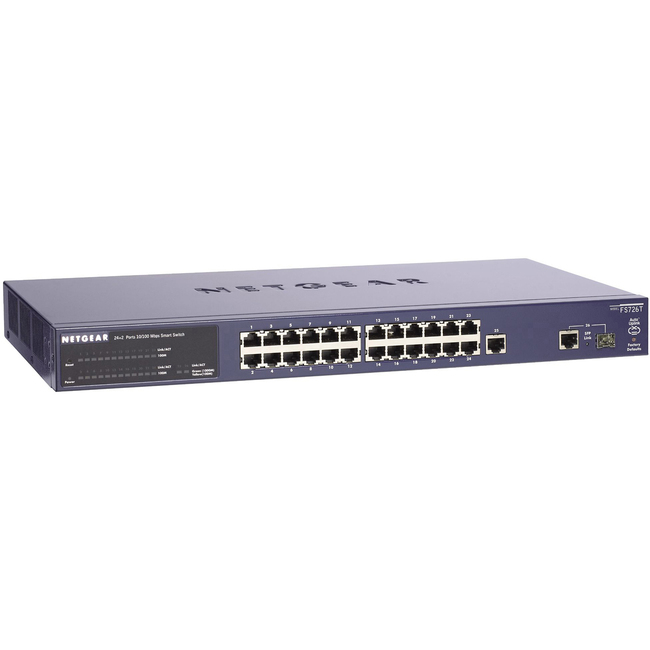

Netgear ProSafe FS726T Smart Switch

Computer > Enterprise Computing > Network Switches

NETGEAR

Price: $168.99

Availability: 275 In Stock

Mfg Part# FS726TNA

Quantity:

Product Information

Reviews

Pros / Cons

Recommended Accessories

The FS726T smart network switch provides some key management features at a surprising inexpensive price point.The FS726T includes affordable built-in Gigabit power to easily connect to servers or a Gigabit-speed backbone. With the inclusion of 24 10/100 Mbps ports, 2 copper 10/100/1000 ports and an SFP slot for fibre connectivity, growing business networks can benefit from superior performance and keep pace with expanding network needs.

General Information

Manufacturer:
Netgear, Inc
Manufacturer Part Number:
FS726TNA
Manufacturer Website Address:
www.netgear.com
Brand Name:
Netgear
Product Line:
ProSafe
Product Model:
FS726T
Product Name:
ProSafe FS726T Smart Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Number of Ports:
24
Fast Ethernet Port:
Yes
Interfaces/Ports:
2 x RJ-45 10/100/1000Base-T LAN

Media & Performance

Connectivity Media:
Twisted Pair
Performance:
8.8Gbps Bandwidth

I/O Expansions

Number of Expansion Slots:
1
Expansion Slots:
(1 Total) SFP (mini-GBIC)

Network & Communication

Flow Control:
IEEE 802.3x (Full-duplex)
Switching Method:
Store-and-forward
Layer Supported:
2
Address Table:
8 K MAC Address -

Management & Protocols

Manageable:
Yes
Management:
Port-based QoS Web-based management Port-based VLAN (Up to 26) Class of Service for prioritisation Port Trunking for increased bandwidth Simple Network Management Protocol (SNMP v1)
Protocols:
DHCP
Security Features:
Password Access Control

Controls/Indicators

Status Indicators:
Per device: Power Per port: Link/ Activity, Speed

Reliability

MTBF:
34.2 Year

Power Description

Input Voltage:
220 V AC
Input Voltage Range:
100 V AC to 240 V AC
Frequency:
50 Hz or 60 Hz
Power Consumption:
13 W @ Maximum

Physical Characteristics

Height:
1.6"
Width:
17.8"
Depth:
8.1"
Weight (Approximate):
5.50 lb

Miscellaneous

Package Contents:
24-port Smart Switch with Gigabit Ports FS726T Warranty/Support information card Rubber footpads Installation guide Rack-mount kit Resource CD Power cord
Additional Information:
Switch is housed in a 17" metal box Network latency: 20us for 64-byte frames in store-andforward mode for 100 Mbps to 100 Mbps transmission
System Requirements:
Category 5 network cables Network card for each PC Network software (e.g., Windows) Web Browser (e.g: Internet Explorer 5.0 or higher, Netscape 6.0 or higher)
Certifications & Standards:
Administrative Standards: RFC 1213 MIB II RFC 1157 SNMP v1 RFC 1493 Bridge MIB RFC 2131 DHCP client RFC 1643 Ethernet Interface MIB IEEE Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3x IEEE 802.1D STP IEEE 802.1p (CoS) IEEE 802.1Q Static VLAN IEEE802.3ad Link Aggregation Electromagnetic Emissions: CE mark, commercial FCC Part 15 Class A VCCI Class A C-Tick Electromagnetic Immunity: EN 55024 Safety: cUL IEC950/EN60950
