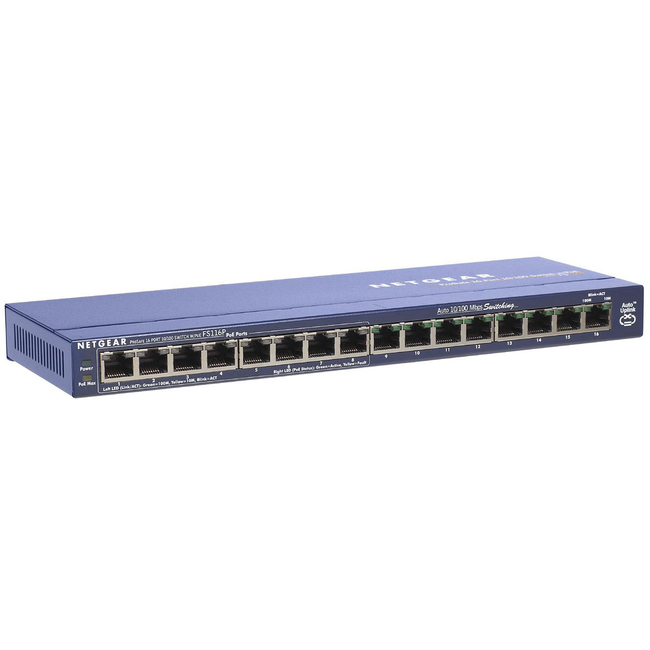

Netgear ProSafe FS116P Ethernet Switch

Computer > Enterprise Computing > Network Switches

NETGEAR

Price: $209.99

Availability: 17 In Stock

Mfg Part# FS116PNA

Quantity:

Product Information

Reviews

Pros / Cons

The ProSafe FS116P provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The sixteen Fast Ethernet ports can be used for any 10/100 Mbps link and eight of these ports can supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power only to 802.3af end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power when PoE devices are disconnected. Easy and reliable, the ProSafe FS116P automatically determines PoE requirements, speed, duplex, and cable type using AutoUplink.

General Information

Manufacturer:
Netgear, Inc
Manufacturer Part Number:
FS116PNA
Manufacturer Website Address:
www.netgear.com
Brand Name:
Netgear
Product Line:
ProSafe
Product Series:
FS100
Product Model:
FS116P
Product Name:
ProSafe FS116P Ethernet Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Number of Ports:
16
Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
No
10Gigabit Ethernet Port:
No
Token Ring Port:
No
LRE Port:
No
DSL Port:
No
Interfaces/Ports:
8 x RJ-45 10/100Base-TX PoE LAN

Media & Performance

Connectivity Media:
UTP 10/100Base-TX
Broadband Transmission Speed:
Not Applicable
Broadband Transmission Technology:
Not Applicable
Powerline Transmission Speed:
Not Applicable
Powerline Transmission Standard:
Not Applicable
Switching Throughput:
3.20 Gbps
Performance:
3.2Gbps Bandwidth

I/O Expansions

Number of Expansion Slots:
Not Applicable
Expansion Slots:
Not Applicable

Network & Communication

Flow Control:
IEEE 802.3x (Full-duplex)
Switching Method:
Store-and-forward
Layer Supported:
2
Number of Stacks:
Not Applicable
Address Table:
8 K MAC Address -

Controls/Indicators

Status Indicators:
Power Link, speed, and activity

Reliability

MTBF:
22.1 Year

Power Description

Power Over Ethernet:
Yes
Input Voltage:
48 V DC
Input Current:
1.20 A
Power Consumption:
14.40 W @
Power Source:
Power Supply
Redundant Power Supply:
No

Environmental Conditions

Temperature:
14 F (-10 C) to 158 F (70 C) Storage
Humidity:
95% Non-condensing Relative Humidity Storage
Altitude:
10000 ft Maximum Operating

Physical Characteristics

Form Factor:
Wall Mountable
Height:
1.1"
Width:
11.3"
Depth:
4.1"
Weight (Approximate):
2 lb

Miscellaneous

Package Contents:
ProSafe FS116P Ethernet Switch Wall-Mount Kit AC Adapter Quick Installation Guide Warranty/Support Information Card
Additional Information:
Addressing: 48-bit MAC address Network latency: Less than 20 us for 64-byte frames in store-and-forward mode for100 Mbps to 100 Mbps transmission
System Requirements:
Network cables Network card for each PC or server
Compatibility:
Windows Linux Mac OS
Certifications & Standards:
IEEE: IEEE 802.3 IEEE 802.3u IEEE 802.3x Safety Agency Approvals: UL listed (UL 1950)/cUL IEC950/EN60950 Electromagnetic Emissions: CE mark, commercial FCC part 15 Class A EN55 022 (CISPR22), Class A VCCI Class A C-Tick
