Manufacturer

M-Audio

Manufacturer Website Address

www.m-audio.com

Marketing Information

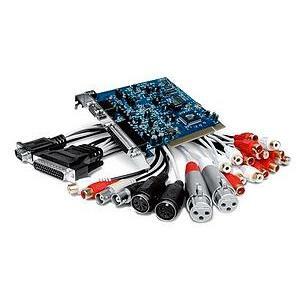

The Delta 1010LT delivers much of the same universal connectivity, high fidelity and seamless performance as the popular Delta 1010 on a single PCI card. Multiple analog I/O, MIDI, S/PDIF and surround sound support are all here. Two inputs even have mic/line preamps on XLR connectors, saving the expense of outboard preamps. It's all on a compact, half-size PCI card with two color-coded breakout cables. Combine up to four Deltas in your system for a maximum of 32 analog and four stereo S/PDIF inputs and outputs.

Host Interface

PCI

Interfaces/Ports

1 x 44-pin DB-44 Audio Line In/Out - Analog

Manufacturer Part Number

US41077

Brand Name

M-AUDIO

Marketing Information

The Delta 1010LT delivers much of the same universal connectivity, high fidelity and seamless performance as the popular Delta 1010 on a single PCI card. Multiple analog I/O, MIDI, S/PDIF and surround sound support are all here. Two inputs even have mic/line preamps on XLR connectors, saving the expense of outboard preamps. It's all on a compact, half-size PCI card with two color-coded breakout cables. Combine up to four Deltas in your system for a maximum of 32 analog and four stereo S/PDIF inputs and outputs.

Host Interface

PCI

Sampling Rate

24bit 96kHz

Impedance

9.5Kilo Ohm

Audio & Mixing Features

SCMS copy protection control Digital I/O supports surround-encoded AC-3 and DTS pass-through Software controlled 36-bit internal DSP digital mixing/routing Word clock I/O for sample accurate device synchronization Delta 1010LT card supports ASIO 2,MME,Sound Manager,OMS,DirectX and GSIF

Interfaces/Ports

1 x 44-pin DB-44 Audio Line In/Out - Analog

Form Factor

Internal

Additional Information

Peak Analog Input Signal: +14.2 dBu (+4 dBu setting) +2.1 dBV (-10 dBV setting) Peak Analog Output signal: +14.0 dBu (+4 dBu setting) +2.0 dBV (-10 dBV setting) THD: Dynamic range: Output: 101.5dB (D/A) (A-weighted) Input: 99.6dB (A/D) (A-weighted) Connectors On Breakout Cable 1 For Digital Connections: 1 X BNC Connector - Word Clock Input 1 X BNC Connector - Word Clock Output 1 X RCA Connector - Coaxial S/PDIF Input 1 X RCA Connector - Coaxial S/PDIF Output 1 X MIDI Connector - MIDI Input 1 X MIDI Connector - MIDI Output Connectors on Breakout Cable 2 For Analog Connections: 6 X RCA Connector - Coaxial Analog Input 2 X XLR Connectors - Analog Input 8 X RCA Connector - Coaxial Analog Output
