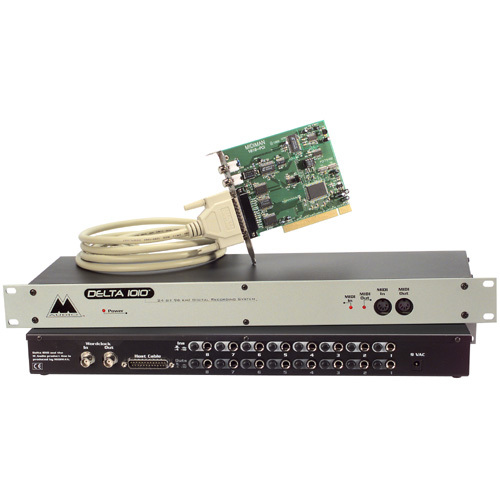

Recognized around the world as the top choice in host-based PCI digital audio solutions, the rack-mount Delta 1010 is designed to handle the needs of the most demanding project and professional studios. Superb engineering and ultra-high quality converters deliver fidelity surpassing systems that cost many times more. Multiple inputs accommodate recording numerous tracks simultaneously, including zero-latency monitoring for seamless overdubs. Multiple outs route individual tracks or soft synth/sampler timbres to a mixing console, or directly drive up to 7.1 surround sound systems. The analog outs also remain live for monitoring while mixing or transferring digital signals via S/PDIF. MIDI I/O rounds out everything you need to take advantage of today's music software. Combine up to four Deltas in your system for a maximum of 32 analog and four stereo S/PDIF inputs and outputs.
Host Interface:
PCI
Signal to Noise Ratio (SNR):
-117 dB - D/A (A-weighted)
Frequency Response:
20Hz to 22kHz 0.3 dB
Sampling Rate:
24bit 96kHz (Full-duplex recording)
DAC Data Width:
24bit
Sound Channels:
7.1
Platform Support:
PC
Software Included:
Ableton Live Lite 4
Additional Information:
Digital I/O supports surround-encoded AC-3 and DTS pass-through
SCMS serial copy management control
+4dBu/-10dBV operation individually switched on rack-mount unit
Software-controlled 36-bit internal DSP digital mixing/routing
Zero-latency monitoring
THD +N: 0.00072% (A/D), 0.00200% (D/A)
Compatible with ASIO 2, MME, Sound Manager, OMS, DirectX, GSIF 2, Mac OS X Core Audio / Core MIDI
External I/O Device Connectivity:
8 x 8 analog I/O on balanced/unbalanced 1/4" TRS
1 x 1 MIDI I/O
Word clock I/O for sample-accurate device synchronization
System Requirements:
PC:
Windows 98 Second Edition*, Windows Me*, Windows 2000 with Service Pack 4*, Windows XP with Service Pack 2
DirectX 9.0c
Pentium III 500 MHz w/128MB RAM
*No ongoing updates/support for Windows 98 Second Edition, Me or 2000
Mac:
OS 9.2.2* w/128MB RAM, Opcode OMS 2.3.8 for MIDI;
Mac OS X 10.2.8*, 10.3.8 w/256MB RAM
Mac OS X 10.4.5 w/512MB RAM
G3 or G4 500**
G5 w/PCI-X expansion slots***
*No ongoing updates/support for Mac OS 9 or Mac OS X 10.2.8
**G3/G4 accelerator cards not supported
***G5 with PCI-Express expansion slots not supported
