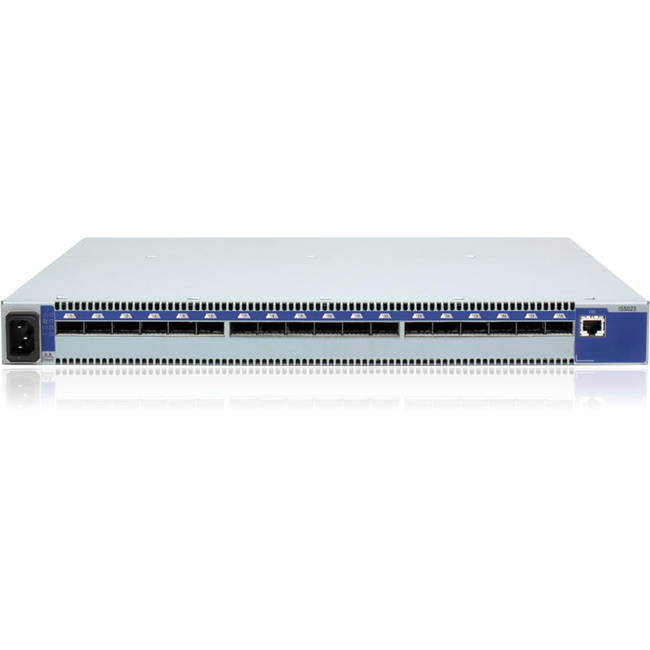

The IS5023 remotely-managed switch system provides a cost effective high-performance fabric solution in a 1U form factor by delivering 1.44Tb/s of non-blocking bandwidth with 100ns port-to-port latency. Built with Mellanox's 4th generation InfiniScale IV InfiniBand switch device, the IS5023 provides up to 40Gb/s full bidirectional bandwidth per port. This remotely-managed fixed edge switch is an ideal choice for top-of-rack leaf connectivity or for building small to medium sized clusters. The IS5023 is designed to carry converged LAN and SAN traffic with the combination of assured bandwidth and granular Quality of Service (QoS).
Manufacturer:
Mellanox Technologies Ltd
Manufacturer Part Number:
MIS5023Q-1BFR
Manufacturer Website Address:
www.mellanox.com
Brand Name:
Mellanox
Product Model:
IS5023
Product Name:
InfiniScale IV IS5023 InfiniBand Switch
Product Type:
InfiniBand Switch
Data Transfer Rate:
40 Gbps Infiniband
Performance:
1.44 Tbps Throughput
Expansion Slots:
16 x QSFP
Slot Details:
16 x QSFP Unoccupied
Form Factor:
1U Rack-mountable
Package Contents:
InfiniScale IV IS5023 InfiniBand Switch Rack Rails
Certifications & Standards:
FCC Class A certified EN 61000-3-2 VCCI Class A ITE IEC 60950 EN 61000-3-3 EN55022 Class A CB IEC 60068-2-32 cTUVus EN55024 Class IEC 60068-2-29 IEC 60068-2-64 ICES Class A ISO 7779 ETS 300 753
Green Compliant:
Yes
Green Compliance Certificate/Authority:
RoHS-6
Standard Warranty:
1 Year Limited
Price: $1828.99
Price: $7835.99
