Mellanox Grid Director 4036 InfiniBand Switch

Computer > Networking > Routers & Firewalls

Left Side Pixel
VLT-30111 - Mellanox Grid Director 4036 InfiniBand Switch

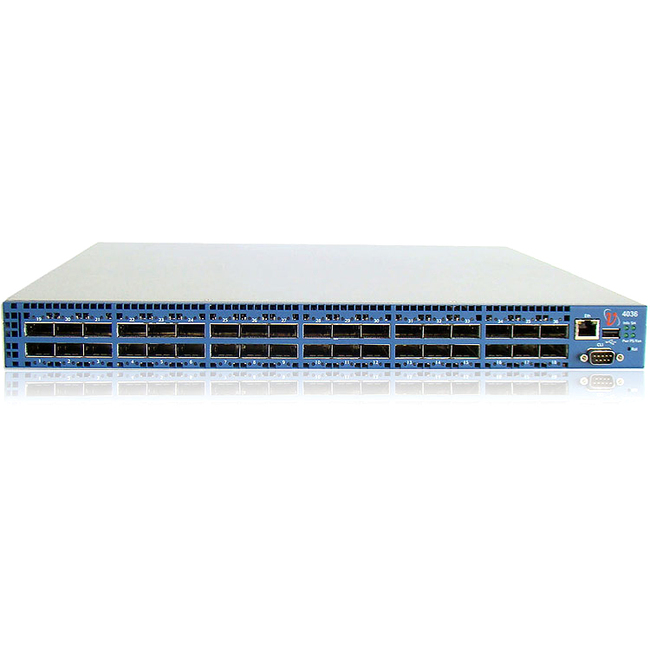

Mellanox Grid Director 4036 InfiniBand Switch
Bookmark and Share
MELLANOX TECHNOLOGIE
Price: $7835.99
Availability: 4 In Stock
Mfg Part# VLT30111
Quantity:

HACKER SAFE certified sites prevent over 99.9% of hacker crime.
BBB.org
Right Side Pixel
Bottom Pixel
Advertisement
The Grid Director 4036 is a high performance, low latency and fully non-blocking InfiniBand switch for high performance clusters. Delivering 2.88Tb/s of non-blocking bandwidth with 100 nanoseconds of latency (port-to-port), I/O bottlenecks are removed making applications operate at maximum efficiency. The efficient Grid Director 4036's smart design makes it easy to build clusters that can scale-out to thousands of nodes.

General Information
  • Manufacturer:
    Mellanox Technologies Ltd
  • Manufacturer Part Number:
    VLT-30111
  • Manufacturer Website Address:
    www.mellanox.com
  • Brand Name:
    Mellanox
  • Product Line:
    Grid Director
  • Product Model:
    4036
  • Product Name:
    Grid Director 4036 InfiniBand Switch
  • Product Type:
    InfiniBand Switch
Technical Information
  • Fabric Latency:
    < 100 ns
  • Topology:
    Point-to-Point
Media & Performance
  • Data Transfer Rate:
    40 Gbps Infiniband
  • Performance:
    2.88 Tbps Bandwidth
Interfaces/Ports
  • Number of Fiber Channel Ports:
    36
  • Interfaces/Ports Details:
    1 x RJ-45 10/100/1000Base-T Management
I/O Expansions
  • Expansion Slots:
    36 x QSFP
  • Slot Details:
    36 x QSFP Unoccupied
Management & Protocols
  • Protocols:
    SNMP 1
Power Description
  • Number of Power Supplies:
    2
  • Redundant Power Supply:
    Yes
  • Power Supply Form Factor:
    Hot-pluggable
Physical Characteristics
  • Form Factor:
    1U 19" Rack-mountable
  • Dimensions:
    1.7" Height x 16.9" Width x 15.7" Depth
  • Weight (Approximate):
    17.00 lb
Miscellaneous
  • Certifications & Standards:
    VCCI EN 61000-3-2 EN55022 IEC 60950 EN 61000-3-3 EN55024 UL 60950 CSA C22.2 No. 60950-00 FCC CFR47 Part 15
