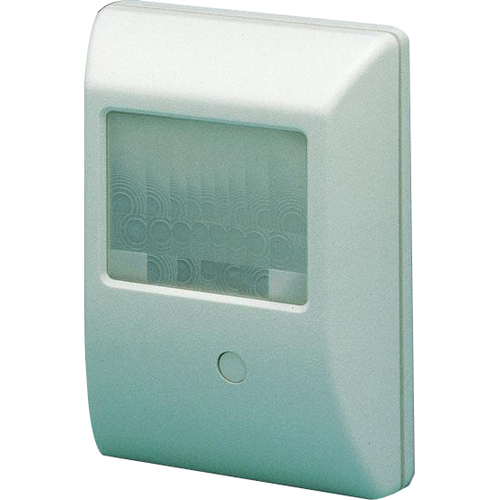

The Model DXS-54 Supervised Passive Infrared Motion Detector Transmitter is a battery powered passive infrared motion detector with a built-in transmitter designed for use with Linear's DXS and DX format receivers and PERS consoles. In PERS installations, the DXS-54 functions to reset the PERS activity timer. When the passive infrared sensor detects motion in its field of view, the transmitter sends a digitally coded wireless signal to the PERS console.
Connectivity Technology:
IrDA
Operating Range:
1500 ft
Package Contents:
DXS-54 Motion Sensor Mounting Hardware
Additional Information:
Activity timer reset, supervisory, and low battery transmissions Walk-test mode Fresnel lens with 24 facets Battery saver circuitry 9 volt alkaline battery supplied DXS format RF frequency: 315 MHz Detection Pattern: 30 feet x 30 feet PIR Sensitivity: Preset, non-adjustable, pulse count of 3 with 8-second detection window
Compatibility:
PERS-2400B:Personal Emergency Reporting System PERS-3600B:Personal Emergency Reporting System
Standard Warranty:
1 Year Limited
Price: $108.65
