Manufacturer:

Kentrox, LLC

Manufacturer Part Number:

2200

Manufacturer Website Address:

www.kentrox.com

Brand Name:

Kentrox

Product Name:

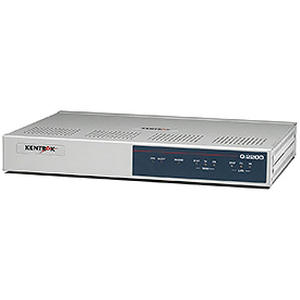

Q-Series Q2200 Access Router

Product Type:

Access Router

Number of Ports:

5

Fast Ethernet Port:

Yes

T-Carrier Port:

Yes

Interfaces/Ports:

1 x RJ-45 Management

Connectivity Media:

Category 5 UTP

Management:

GUI: Intuitive Web-style GUI (accessible from WAN or LAN) Access Management: Three levels-admin, configure, view; up to 10 users with passwords Logs: Alarm, System, Firewall, Traffic, VPN Syslog support SNMP: Traps, MIB II, DS1, I/F MIBs, Frame Relay DTE MIB Updates: Software updates via FTP or GUI CLI: Intuitive command line interface (CLI) accessible via control port, Telnet, or modem RT Clock: SNTP support and 8-hour power failure backup

Protocols:

RIP v2.0

Status Indicators:

System WAN LAN Reset button

Input Voltage:

110V AC

Input Voltage Range:

100V AC to 240V AC

Frequency:

50 Hz or 60 Hz

Power Consumption:

20W

Power Source:

Power Supply

Temperature:

-4 F (-20.0 C) to 150 F (65.55556 C) Storage

Humidity:

5% to 95% Non-condensing Relative Humidity Storage

Compatible Rack Unit:

1U

Form Factor:

Wall-mountable

Dimensions:

1.6" Height x 11.8" Width x 8.6" Depth

Shipping Dimensions:

3.5" Height x 7.5" Width x 11" Depth

Weight:

3.8 lb

Shipping Weight:

7.08 lb

Package Contents:

Q2200 T1 QoS Access Router Documentation CD (includes Adobe Acrobat PDF versions of this manual, the User's Guide and the CLI Reference Guide) AC - DC power adapter and cable for use in North America One Ethernet LAN cable, Cat 5E, UTP 568B, 6' Two #8 wood screws and anchors for wall-mounting the Router

Additional Information:

Bandwidth Class-based Weighted Fair Queuing Marking: Configurable QoS marking Policies: 32 user-configurable QoS policies for prioritization by source and destination addresses, port, protocol, DiffServ Code Point (DSCP) Monitoring: QoS traffic reports and graphs Configurable WAN Latency report

System Requirements:

For configuring the Router: Computer with monitor, keyboard, and mouse Internet browser software: Microsoft. Internet Explorer 5.5 or later; Netscape 7.1; or browser based on Mozilla 1.4 or later Network interface card (NIC) for connection to an Ethernet port on the Router, or to an Ethernet LAN that will be connected to the Router DHCP client setup, i.e., the computer automatically obtains its IP address from the Router

Certifications & Standards:

ITU Q.933 ANSI T1.617 802.1P 802.1Q FCC Part 68 FCC Part 15 Emissions: FCC 47 CFR 15 Class A Safety: ANSI/UL 60950-1-2002 CAN/CSA-C22.2 No 60950-1-03 Terminal: FCC 47 CFR 68 IC CS-03

Standard Warranty:

1 Year
