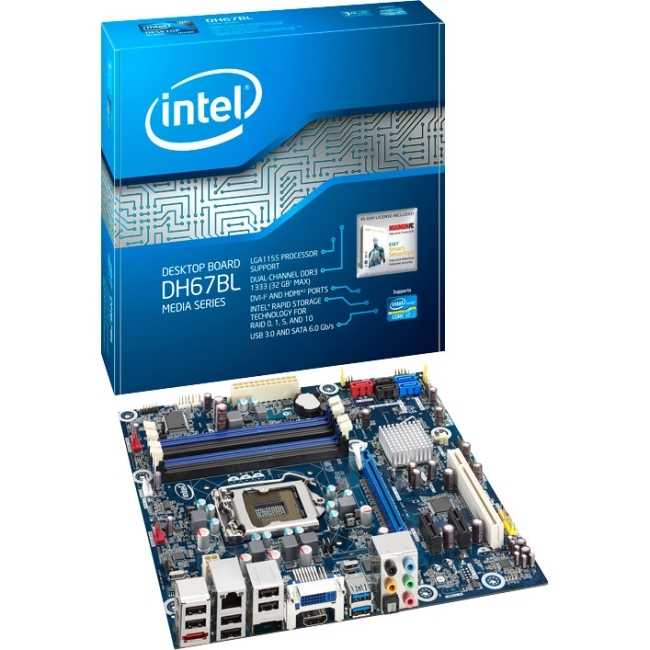

The Intel Desktop Board DH67BL is an Intel H67 Express chipset-based desktop board in microATX form factor. It supports the 2nd generation Intel Core i7 processors, Intel Core i5 processors, and other Intel processors in the LGA1155 package. The board is featured with DVI-I and HDMI connectors, and supports dual independent display for processors with Intel HD Graphics. Powered by the 2nd generation Intel Core processors, DH67BL delivers a superb visual performance for sharper images, richer color, and lifelike audio and video. Intel Desktop Board DH67BL also offers premium features, such as two SATA 6 Gb/s ports, two USB 3.0 ports with 5Gb/s link speed, and Intel Rapid Storage Technology (Intel RST) for RAID 0, 1, 5, and 10, which provides new levels of protection, performance, and expandability.
Manufacturer:
Intel Corporation
Manufacturer Part Number:
BOXDH67BLB3
Manufacturer Website Address:
www.intel.com
Brand Name:
Intel
Product Line:
Media
Product Model:
DH67BL
Product Name:
Media DH67BL Desktop Motherboard
Packing:
Box
Product Type:
Desktop Motherboard
Number of Memory Slots:
4
Maximum Memory:
32 GB
Memory Standard:
DDR3-1333/PC3-10600
Memory Technology:
DDR3 SDRAM
Controller Type:
Serial ATA/300
RAID Supported:
Yes
RAID Levels:
0+1
Number of Total Expansion Slots:
4
Number of PCI Slots:
1
PCI Express Standard:
PCI Express 2.0
Total Number of PCI Express Slots:
3
Number of PCI Express x1 Slots:
2
Number of PCI Express x16 Slots:
1
eSATA:
Yes
Total Number of USB Ports:
8
Number of USB 2.0 Ports:
6
Number of USB 3.0 Ports:
2
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone Port:
Yes
S/PDIF:
Yes
Number of S/PDIF Out Ports:
1
HDMI:
Yes
Number of HDMI Outputs:
1
DisplayPort:
Yes
Number of DisplayPort Outputs:
1
DVI:
Yes
Number of DVI Outputs:
1
Network (RJ-45):
Yes
Power Supply Supported:
ATX12V
Form Factor:
Micro ATX
Width:
9.6"
Depth:
9.6"
