BLKD425KT - Intel D425KT Desktop Motherboard - Intel NM10 Express Chipset - 10 x Bulk Pack
Intel D425KT Desktop Motherboard - Intel NM10 Express Chipset - 10 x Bulk Pack
Bookmark and Share
INTEL
Price: $660.99
Availability: 43 In Stock
Mfg Part# BLKD425KT
Quantity:

HACKER SAFE certified sites prevent over 99.9% of hacker crime.
BBB.org
Right Side Pixel
Bottom Pixel
Advertisement

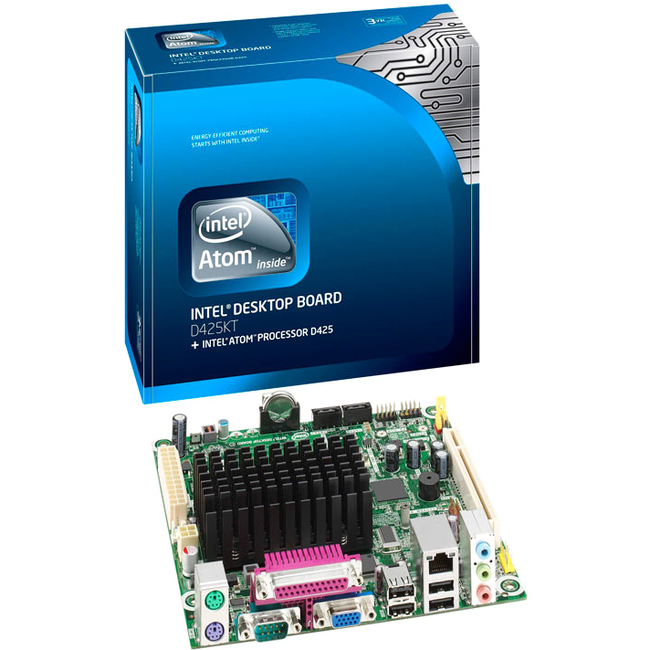

Intel Desktop Board D425KT with integrated Intel Atom processor D425 and the Intel NM10 Express Chipset enables low-power consumption and reduces the package footprint by 70 percent. The board also features 10/100 integrated LAN and USB Solid State Drive (SSD) keep-out-zone design - an ideal combination for a diskless usage model. With breakthrough low-power silicon, the Intel Desktop Board D425KT can also be used with a passive thermal solution based on the recommended boundary conditions. While this desktop board is small in size, it delivers a powerful Internet experience for all audiences.

General Information
  • Manufacturer:
    Intel Corporation
  • Manufacturer Part Number:
    BLKD425KT
  • Manufacturer Website Address:
    www.intel.com
  • Brand Name:
    Intel
  • Product Model:
    D425KT
  • Product Name:
    D425KT Desktop Motherboard
  • Packaged Quantity:
    10
  • Package Type:
    Bulk
  • Product Type:
    Desktop Motherboard
Processor & Chipset
  • Chipset Manufacturer:
    Intel
  • Chipset Model:
    NM10 Express
  • Total Processor Supported:
    1
  • Processor Supported:
    Atom
  • 64-bit Processing:
    Yes
Memory
  • Number of Memory Slots:
    2
  • Memory Form Factor:
    SoDIMM
  • Maximum Memory:
    4 GB
  • Memory Standard:
    DDR3-1066/PC3-8500
  • Memory Technology:
    DDR3 SDRAM
I/O Controller
  • Controller Type:
    Serial ATA/300
Video
  • Onboard Video:
    Yes
  • Graphics Controller Manufacturer:
    Intel
  • Graphics Controller Model:
    GMA 3150
  • Graphics Controller Memory:
    256 MB
Audio
  • Sound Controller Manufacturer:
    Realtek
  • Sound Controller Model:
    ALC662
  • Audio Channels:
    3.1
Network & Communication
  • Gigabit Ethernet:
    Yes
I/O Expansions
  • Number of Total Expansion Slots:
    1
  • Number of PCI Slots:
    1
Storage
  • Number of SATA Interfaces:
    2
Back Panel Interfaces
  • Total Number of USB Ports:
    4
  • Number of USB 2.0 Ports:
    4
  • Parallel Port:
    Yes
  • Serial Port:
    Yes
  • Audio Line In:
    Yes
  • Audio Line Out:
    Yes
  • Microphone Port:
    Yes
  • VGA:
    Yes
  • Network (RJ-45):
    Yes
  • PS/2 Port:
    Yes
  • Number of PS/2 Ports:
    2
Onboard Interfaces
  • Total Number of Onboard USB Ports:
    3
  • Onboard LEDs Header:
    Yes
  • Onboard Audio Header:
    Yes
Physical Characteristics
  • Form Factor:
    Mini ITX
  • Width:
    6.7"
  • Depth:
    6.7"
Miscellaneous
  • Green Compliant:
    Yes
  • Green Compliance Certificate/Authority:
    RoHS
Warranty
  • Standard Warranty:
    3 Year
