Manufacturer:

Hewlett-Packard

Manufacturer Part Number:

J8165A#ABA

Manufacturer Website Address:

www.hp.com

Brand Name:

HP

Product Line:

ProCurve

Product Series:

2600

Product Name:

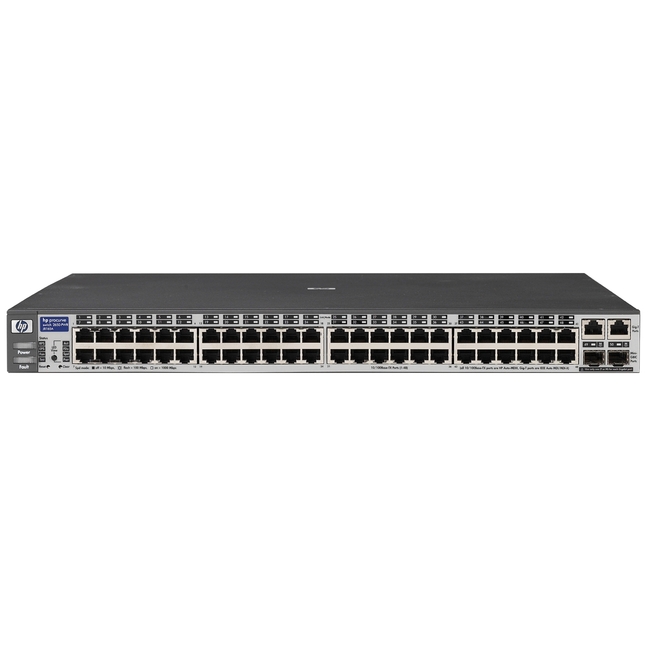

ProCurve 2650-PWR Ethernet Switch

Product Type:

Ethernet Switch

Number of Ports:

48

Fast Ethernet Port:

Yes

Interfaces/Ports:

2 x RJ-45 10/100/1000Base-T

Connectivity Media:

Twisted Pair

Performance:

10.1Mpps Throughput For 64-byte Packet

Number of Expansion Slots:

2

Expansion Slots:

(2 Total) SFP (mini-GBIC)

Modules:

Not Included

Flow Control:

IEEE 802.3x (Full-duplex)

Number of Stacks:

16

Address Table:

8K MAC Address

Manageable:

Yes

Management:

HP ProCurve Manager HP ProCurve Manager Plus Command line interface Web browser Configuration Menu Telnet management Bridge MIB MIB II IP Forwarding Table MIB Entity MIB Evolution of Interface Ethernet MIB Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm), and 9 (events) RMON probe configuration (RMON v2) MAU MIB SMON ICMP IGMPv1/v2/v3 SNMPv1/v2c/v3

Protocols:

LACP

Security Features:

SSHv1/v2 Secure Shell Secure Sockets Layer (SSL) RADIUS Client MIB RADIUS Accounting MIB

Processor:

Motorola MPC8245 PowerPC

Flash Memory:

16MB

Status Indicators:

Fail Link activity Port duplex mode Port status Power Test mode

Input Voltage:

110V AC

Input Voltage Range:

100V AC to 240V AC

Input Current:

6.4A

Frequency:

50 Hz or 60 Hz

Power Consumption:

631 W Operating

Power Source:

Power Supply

Redundant Power Supply:

Yes

Temperature:

32 F (0.0 C) to 131 F (55.0 C) Operating

Humidity:

15% to 95% Relative Humidity Storage

Altitude:

15091 ft Maximum

Thermal Dissipation:

2155 BTU/h Maximum

Dimensions:

1.75" Height x 18.03" Width x 17.42" Depth

Shipping Dimensions:

6" Height x 23" Width x 23" Depth

Weight:

16.3 lb

Shipping Weight:

16.35 lb

Package Contents:

Switch HP ProCurve Manager Rack-Mounting kit

Additional Information:

Provide up to 15.4W per port to power IP phones, wireless access points, Web cameras, and more Wire-speed non-blocking architecture for low latency throughput Latency: <12 s (LIFO) Relative humidity: 15% to 95% @ 104 F (40 C), non-condensing Relative humidity: 15% to 95% @ 149 F (65 C) Basic IP routing: enables automatic routing with up to 16 external routes including one default route in IP networks

Certifications & Standards:

IEEE 802.3: Type 10Base-T IEEE 802.3u: Type 100Base-TX IEEE 802.3ab: Gigabit Ethernet IEEE 802.3x: Flow Control IEEE 802.1D: Spanning Tree IEEE 802.1w: Rapid Convergence Spanning Tree IEEE 802.3ad: Link Aggregation Control Protocol IEEE 802.3af: PoE Cisco Fast EtherChannel (FEC) IEEE 802.1X: Network Login IEEE 802.1p: Priority IEEE 802.1Q: GVRP Safety: EN 60950/IEC 950 UL 1950 3rd edition cUL (CSA 950) NOM-019-SCFI-1994 Emissions: FCC Class A EN 55022/CISPR-22 Class A VCCI Class A Immunity: EN 55024/CISPR-24 ESD: IEC 61000-4-2, 4 kV CD, 8 kV AD Radiated: IEC 61000-4-3, 3V/m EFT/Burst: IEC 61000-4-4, 1.0 kV (power line), 0.5 kV (signal line) Surge: IEC 61000-4-5, 1 kV/2 kV AC Conducted: IEC 61000-4-6, 3V Power frequency magnetic field: IEC 61000-4-8, 1A/m, 50 or 60 Hz Voltage dips and interruptions: IEC 61000-4-11, >95% reduction, 0.5 period, 30% reduction, 25 periods Harmonics: EN 61000-3-2/IEC 61000-3-2 Flicker: EN 61000-3-3/IEC 61000-3-3

Standard Warranty:

Lifetime
