The GIGABYTE Ultra Durable 3 design features twice the copper for both the power and ground layers of the PCB, dramatically lowering system temperature by efficiently spreading heat from critical areas of the motherboard (such as the CPU power zone) throughout the entire PCB. GIGABYTE's Ultra Durable 3 also lowers the PCB impedance by 50%, which helps to reduce electrical waste and further lowers component temperatures. A 2x Copper layer design also provides improved signal quality and lower EMI (Electromagnetic Interference), providing better system stability and allowing for greater margins for overclocking.
Manufacturer:
GIGABYTE Technology, Inc
Manufacturer Part Number:
GA-P67X-UD3-B3
Manufacturer Website Address:
www.giga-byte.com
Brand Name:
Gigabyte
Product Line:
Ultra Durable 3
Product Series:
6
Product Model:
GA-P67X-UD3-B3
Product Name:

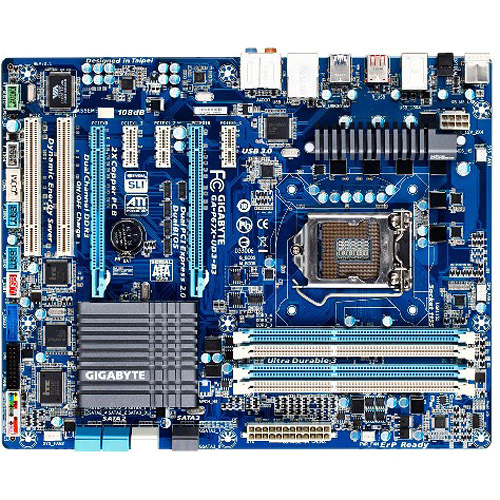

Ultra Durable 3 6-series GA-P67X-UD3-B3 Desktop Motherboard
Product Type:
Desktop Motherboard
Number of Memory Slots:
4
Memory Form Factor:
DIMM
Maximum Memory:
32 GB
Memory Standard:
DDR3-1866/PC3-15000
Memory Technology:
DDR3 SDRAM
Controller Type:
Serial ATA/300
RAID Supported:
Yes
RAID Levels:
0
Number of Total Expansion Slots:
7
Number of PCI Slots:
2
PCI Express Standard:
PCI Express 2.0
Total Number of PCI Express Slots:
5
Number of PCI Express x1 Slots:
3
Number of PCI Express x8 Slots:
1
Number of PCI Express x16 Slots:
1
Total Number of USB Ports:
10
Number of USB 2.0 Ports:
8
Number of USB 3.0 Ports:
2
Total Number of FireWire/i.LINK Ports:
1
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone Port:
Yes
S/PDIF:
Yes
Number of S/PDIF Out Ports:
1
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
PS/2 Port:
Yes
Number of PS/2 Ports:
1
Total Number of Onboard USB Ports:
8
Number of Onboard USB 2.0 Ports:
6
Number of Onboard USB 3.0 Ports:
2
Total Number of Onboard FireWire/i.LINK Ports:
1
Number of Onboard FireWire/i.LINK 400 Ports:
1
Onboard Serial Header:
Yes
Onboard LEDs Header:
Yes
Onboard Audio Header:
Yes
Onboard S/PDIF Header:
Yes
Power Supply Supported:
ATX12V
Form Factor:
ATX
Width:
12.0"
Depth:
9.6"
