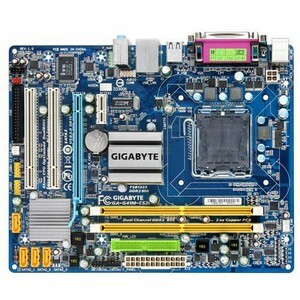

GIGA-BYTE GA-G41M-ES2L Desktop Motherboard - Intel Chipset

Computer > Computer Components > Motherboards

GA-G41M-ES2L - Gigabyte GA-G41M-ES2L Desktop Motherboard - Intel G41 Chipset - Socket T LGA-775

Availability: Out of Stock

Mfg Part# GAG41MES2L

Please alert me when this product comes back in stock:
Email Address:

Product Information

Reviews

Pros / Cons

The GA-G41M-ES2L based on the Intel G41 chipset supports the latest Intel 45nm CPUs, creating a powerful multi-media platform which allows users to do more at once. At the heart of the Intel G41 Express chipset is the Intel X4500 graphics media accelerator, which support DX10 and features several unique innovations including more Execution Units for enhanced 3D performance and Intel Clear Video Technology for sharper images and precise color control.

General Information

Manufacturer:
GIGABYTE Technology, Inc
Manufacturer Part Number:
GA-G41M-ES2L
Manufacturer Website Address:
www.giga-byte.com
Brand Name:
Gigabyte
Product Model:
GA-G41M-ES2L
Product Name:
GA-G41M-ES2L Desktop Motherboard
Product Type:
Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Chipset Model:
G41
Total Processor Supported:
1
Processor Technology:
Enhanced SpeedStep Technology
Processor Socket:
Socket T LGA-775
Processor Supported:
Pentium Extreme Edition
Front Side Bus:
800 MHz
64-bit Processing:
Yes

Memory

Number of Memory Slots:
2
Maximum Memory:
8 GB
Memory Standard:
DDR2-800/PC2-6400
Memory Technology:
DDR2 SDRAM

I/O Controller

Controller Type:
Ultra ATA/133 (ATA-7)

Video

Onboard Video:
On-board Video Chipset
Graphics Controller Manufacturer:
Intel
Graphics Controller Model:
GMA X4500

Audio

Sound Controller Manufacturer:
Realtek
Sound Controller Model:
ALC888B
Audio Channels:
7.1

Network & Communication

Gigabit Ethernet:
Yes

I/O Expansions

Number of Total Expansion Slots:
4
Number of PCI Slots:
2
Total Number of PCI Express Slots:
2
Number of PCI Express x1 Slots:
1
Number of PCI Express x16 Slots:
1

Interfaces/Ports

Total Number of USB Ports:
4
Number of USB 2.0 Ports:
4
Parallel Port:
Yes
Serial Port:
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone Port:
Yes
VGA:
Yes
Network (RJ-45):
Yes
PS/2 Port:
Yes
Number of PS/2 Ports:
1

Onboard Interfaces

Number of IDE Interfaces:
1
Number of SATA Interfaces:
4
Total Number of Onboard USB Ports:
2
Onboard LEDs Header:
Yes
Onboard Audio Header:
Yes
Onboard S/PDIF Header:
Yes

Physical Characteristics

Form Factor:
Micro ATX
Width:
9.6"
Depth:
7.6"

Miscellaneous

Package Contents:
GA-G41M-ES2L Desktop Board Motherboard driver disk User Manual 1 x IDE cable 2 x SATA 3Gb/s cables I/O Shield
Additional Information:
BIOS: 2 x 8 Mbit flash Use of licensed AWARD BIOS Support for DualBIOS PnP 1.0a DMI 2.0 SM BIOS 2.4 ACPI 1.0b
Green Compliant:
Yes
Green Compliance Certificate/Authority:
WEEE
