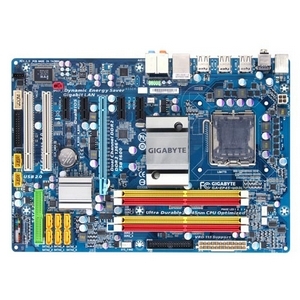

GIGA-BYTE GA-EP45-UD3L Desktop Motherboard - Intel P45 Express Chipset

Computer > Computer Components > Motherboards

GA-EP45-UD3L - Gigabyte GA-EP45-UD3L Desktop Motherboard - Intel P45 Express Chipset - Socket T LGA-775

Availability: Out of Stock

Mfg Part# GAEP45UD3L

Please alert me when this product comes back in stock:
Email Address:

Product Information

Reviews

Pros / Cons

The GA-EP45-UD3L introduces revolutionary GIGABYTE Ultra Durable 3 technology featuring a 2 oz copper PCB to help reduce system temperature and dramatically enhance performance. Based on the Intel P45 chipset the GA-EP45-UD3L delivers a record-setting 1600MHz FSB for the latest Intel Core 2 multi-core processors, and supports dual channel DDR2 memory at speeds of up to 1366MHz and even higher. Additionally, the GA-EP45-UD3L incorporates GIGABYTE DES Advanced technology for industry leading energy saving and enhanced system efficiency.

General Information

Manufacturer:
GIGABYTE Technology, Inc
Manufacturer Part Number:
GA-EP45-UD3L
Manufacturer Website Address:
www.giga-byte.com
Brand Name:
Gigabyte
Product Model:
GA-EP45-UD3L
Product Name:
GA-EP45-UD3L Desktop Motherboard
Product Type:
Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:
Intel
Chipset Model:
P45 Express
Total Processor Supported:
1
Processor Technology:
Enhanced SpeedStep Technology
Processor Socket:
Socket T LGA-775
Processor Supported:
Pentium Extreme Edition
Front Side Bus:
1066 MHz
64-bit Processing:
Yes

Memory

Number of Memory Slots:
4
Maximum Memory:
16 GB
Memory Standard:
DDR2-667/PC2-5300
Memory Technology:
DDR2 SDRAM

I/O Controller

Controller Type:
Floppy Controller

Audio

Sound Controller Manufacturer:
Realtek
Sound Controller Model:
ALC888
Audio Channels:
7.1

Network & Communication

Gigabit Ethernet:
Yes

I/O Expansions

Number of Total Expansion Slots:
7
Number of PCI Slots:
2
Total Number of PCI Express Slots:
5
Number of PCI Express x1 Slots:
4
Number of PCI Express x16 Slots:
1

Storage

Number of IDE Interfaces:
1
Number of SATA Interfaces:
6

Back Panel Interfaces

Total Number of USB Ports:
8
Number of USB 2.0 Ports:
8
Audio Line In:
Yes
Audio Line Out:
Yes
Microphone Port:
Yes
S/PDIF:
Yes
Number of S/PDIF Out Ports:
2
Network (RJ-45):
Yes
PS/2 Port:
Yes
Number of PS/2 Ports:
2

Onboard Interfaces

Total Number of Onboard USB Ports:
2
Onboard LEDs Header:
Yes
Onboard Audio Header:
Yes
Onboard S/PDIF Header:
Yes

Physical Characteristics

Form Factor:
ATX
Width:
12"
Depth:
8.3"

Miscellaneous

Package Contents:
GA-EP45-UD3L Desktop Board Motherboard driver disk User Manual Quick Installation Guide 1 x IDE cable 1 x Floppy disk drive cable 2 x SATA 3Gb/s cables I/O Shield
Additional Information:
BIOS: 2 x 8 Mbit flash Use of licensed AWARD BIOS Support for Dual BIOS PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Green Compliant:
Yes
Green Compliance Certificate/Authority:
RoHS
