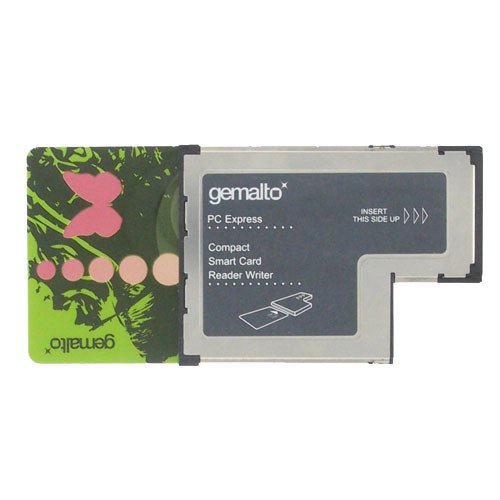

Gemalto PC Express Smart Card Reader/Writer

Computer > Memory Cards > Readers

Availability: Out of Stock

Mfg Part# HWP114310

Please alert me when this product comes back in stock:
Email Address:

Product Information

Reviews

Pros / Cons

PC Express compact smart card reader/writer, designed to plug into a standard PCMCIA ExpressCard 54 PC slot, is the ultimate smart card peripheral for laptop PC and mobile users. It is very simple to use and install. No technical knowledge is needed. If you seek for electronic commerce, home banking or e-purse facilities, secure computer access or any of a multitude of other applications, PC Express is the smartest answer. For the first time, a solution is available that offers impressive possibilities at an exceptional price.

General Information

Manufacturer:
Gemalto NV
Manufacturer Part Number:
HWP114310
Manufacturer Website Address:
www.gemalto.com
Brand Name:
Gemalto
Product Name:
PC Express Smart Card Reader/Writer
Product Type:
Smart Card Reader/Writer

Technical Information

Media Slots:
1
Media Supported:
Smart Card
Features:
Embossed smart cards are supported. Power supply through ExpressCard port Plug and Play USB full speed 12Mbps Sticker and packaging for easy custom branding Strong and reliable casing: PC Express uses a new robust steel case, fully compliant to ExpressCard 54 specification, and already selected by major PC actors Increased smart card performance: PC Express is based on latest PC Core Twin Pro one chip, supporting new ISO7816 class A, B and C (5V, 3V and 1.8V), all ISO7816 TA1 parameters (up to 344 kbps) and extended APDU. EMV 4.0 terminal level 1 certified for Gemcore Twin Pro IFM Easy to install and maintain: PC Express re-uses USB protocol of PC Core Twin Pro firmware which is already implemented in PC USB readers (PC Twin USB & PC USB-SL)

Interfaces/Ports

Interfaces:
1 x ExpressCard/54

Power Description

Input Voltage:
3.3 V AC
Input Current:
55 mA to 200 mA

Environmental Conditions

Temperature:
-4 F (-20 C) to 149 F (65 C) Storage

Physical Characteristics

Weight (Approximate):
0.81 oz

Miscellaneous

System Requirements:
Windows 2000 Windows XP Windows Server 2003 Windows XP 64-bits Edition Windows Vista 32 & 64-bits Linux Redhat WS 3.0, 4.0, SUSE Professional 9.2, DEBIAN "Sarge"
Certifications & Standards:
CCID ISO/IEC 7816-1,2,3,4: IC Cards with contacts EMVCo 4.0 terminal level 1 for Gemcore Twin Pro IFM Microsoft Windows Hardware Quality Labs (WHQL), Windows Logo Program WLP 2.0 EMV Level 1 compliant 4.0 Electro-Magnetic Standards: Europe: 89/336/CEE guideline EN 55022: 1994 Class B EN 50082-1: 1994 EN 50081-1: 1992 EN 61000-4-2: 1995 EN 61000-4-3: 1997 EN 61000-4-4: 1995 Comply with EMC directive 89/336/EEC USA: FCC part 15 Class B
Green Compliant:
Yes
Green Compliance Certificate/Authority:
RoHS
