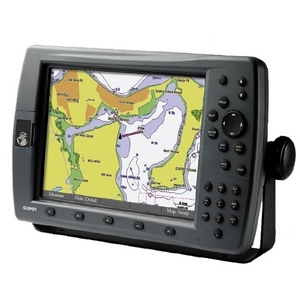

Garmin GPSMAP 2206 Marine GPS Receiver

Call us at 888-566-NERD(6373)

Home

Your Account

Help

Your Cart: 222 Item(s): $61934.83 View Cart

Home > Electronics > GPS Navigation Systems > Fish Finder Units

GARMIN INTERNATIONAL

Price: $814.99

Availability: 1 In Stock

Mfg Part# 0100052400

Quantity:

Product Information

The GPSMAP 2206's 6.4-inch diagonal displays let you see more "big picture" navigation detail with less panning and zooming. Better still, these non-network plotters also come preloaded with detailed marine cartography utilizing BlueChart g2 technology. Built-in coverage is provided for U.S. coastal areas, including Alaska and Hawaii. These integrated charts provide a smoother, more fluid presentation on your plotter screen and they can be viewed in 2D or 3D "crow's nest" perspective for easy orientation.

General Information

Manufacturer:
Garmin, Ltd
Manufacturer Part Number:
010-00524-00
Manufacturer Website Address:
www.garmin.com
Brand Name:
Garmin
Product Name:
GPSMAP 2206 Marine GPS Receiver

Technical Information

Number of Channels:
12
Update Duration:
1 Second
Acquisition Time:
Warm Start 15 Second Approximate
Antenna:
Built-in

Display & Graphics

Display Screen:
6.4" VGA Active Matrix TFT Color LCD
Display Resolution:
640 x 480
Color Support:
256 Colors (8-bit)

Software

Software Included:
U.S. Maps

Environmental Conditions

Temperature:
-15 C (5.0 F) to 50 C (122.0 F)

Physical Characteristics

Dimensions:
6.5" Height x 10.3" Width x 3.3" Depth
Weight:
3 lb

Miscellaneous

Package Contents:
GPSMAP 2206 Marine GPS Receiver Preloaded with U.S. marine detailed maps (g2 technology) GPS 17 WAAS-enabled sensor Bail mount Protective cover Power/data cable CANet cable Owner's manual Quick reference guide Installation instructions
Additional Information:
Built-in, highly-detailed BlueChart g2 marine cartography of the coastal US. This data provides detailed coastlines, shaded depth contours, navaids, port plans, wrecks, restricted areas, tide and current information and 3D perspective Permanent user data storage No memory battery required GPS 17 WAAS-capable receiver Add sonar with optional GSD 21 remote sounder The GSD 20/21/22 sounder module can be used in the GPSMAP 2206 Marine GPS Alarms for anchor drag, arrival, off-course, proximity waypoint, clock, low battery voltage, and GPS accuracy Graphically displays positioning data with DSC-equipped VHF radios Case: Fully gasketed, high-impact plastic alloy, waterproof to IEC 60529-IPX 7 GPS Accuracy: Position: <15 meters (49 feet), 95% typical Velocity: 0.05 meters/sec steady state WAAS Accuracy: Position: <3 meters (10 feet), 95% typical Velocity: 0.05 meters/sec steady state Dynamics: 6gs Power: Source: 10-33 V DC Usage: 25 watts max. at 10 V DC AGC-3 - 3.0 Amp AutoLocate: Approx. 2 minutes
Certifications & Standards:
NMEA 0183 FCC Part 15 Class B

Warranty
