Manufacturer

Epson Corporation

Manufacturer Website Address

www.epson.com

Marketing Information

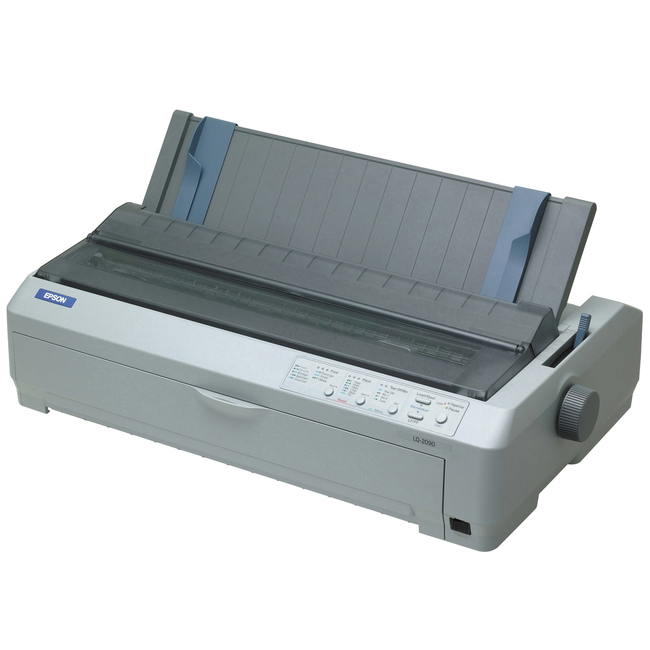

Ideal for businesses that require high quality, multi-part forms printing, the reliable Epson LQ-2090 printer offers extremely low operational costs compared to other printing technologies, as well as superior performance in comparison to other printers in its class. Designed for use in demanding print environments, this heavy-duty dot matrix printer handles critical business applications with precision and ease. And, it's backed by a three-year warranty that includes Epson's superior service and support.

Print Technology

Dot Matrix

Media Type

Cut Sheet

Consumables

1 x Black Ribbon Cartridge

Interfaces/Ports

USB

Network

Fast Ethernet

Weight

21 lb

Manufacturer Part Number

C11C559001

Brand Name

Epson

Product Name

LQ-2090 Dot Matrix Printer

Product Type

Dot Matrix Printer

Print Speed

110 cps Letter Quality at 10 cpi

Print Direction

Bi-directional

Number of Columns

136

Media Type

Cut Sheet

Paper Feed Rate

5 ips

Print Yield

8 Million Characters Black

Language Emulation

IBM PPDS

Print Head Life

400 Million Characters

Frequency

60 Hz

Dimensions

6.3" Height x 23.2" Width x 13.8" Depth

Weight

21 lb

Additional Information

Type-B slot for optional interface cards MTBF: 20,000 POH (25% duty cycle) Ribbon life: 8 million characters at 48 dots/character Paper Feed Mechanism: Feeding method: Friction feed (front, rear) Push tractor (front, rear) Pull tractor (front, bottom, rear) Push and pull tractor* (front, rear) Cut sheet feeder (optional) Roll paper holder (optional) Paper Feed Speed: 45 millisecond per 1/6" 5" per second continuous feed Paper Path: Manual insertion: Front or top in, top out Cut sheet feeder: Top in, top out Tractor: Front, rear or bottom in, top out Fonts: Resident Bitmapped Fonts: Epson Draft 10, 12, 15 cpi Epson Roman 10, 12, 15 cpi proportional Epson San Serif 10, 12, 15 cpi proportional Epson Courier 10, 12, 15 cpi Epson Prestige 10, 12, 15 cpi Epson Script 10 cpi Epson OCRB 10 cpi Epson Script C proportional Epson Orator 10 cpi Epson Orator S 10 cpi Bar Code Fonts: EAN-13 EAN-8 Interleaved 2 of 5 UPC-A UPC-E Code 39 Code 128 POSTNET Codabar (NW-7) Industrial 2 of 5 Matrix 2 of 5 Scalable Fonts: Epson Roman 10.5 pt; 8-32 pt every 2 pt Epson Sans Serif 10.5 pt; 8-32 pt every 2 pt Epson Roman T 10.5 pt; 8-32 pt every 2 pt Epson Sans Serif H 10.5 pt; 8-32 pt every 2 pt Formatting: 32 horizontal tabs Line spacing in 1/6" or programmable (minimum 1/360" increments) Skip over perforations in lines Page length in lines or inches Paper Handling: Forms: Continuous multipart Original plus 4 carbonless copies Maximum thickness: 0.018" Width: Single sheets: 3.9" to 16.5" Continuous: 4.0" to 16.0" Cut-sheet feeder: 7.2" to 16.5" Length: Single sheets: 3.9" to 14.3" Continuous: 4.0" to 22.0" Cut-sheet feeder: 10.1" to 14.0" * Additional tractor unit required Characters per Line: 136 characters @ 10 cpi

Standard Warranty

3 Year

Standard Memory

128 KB
