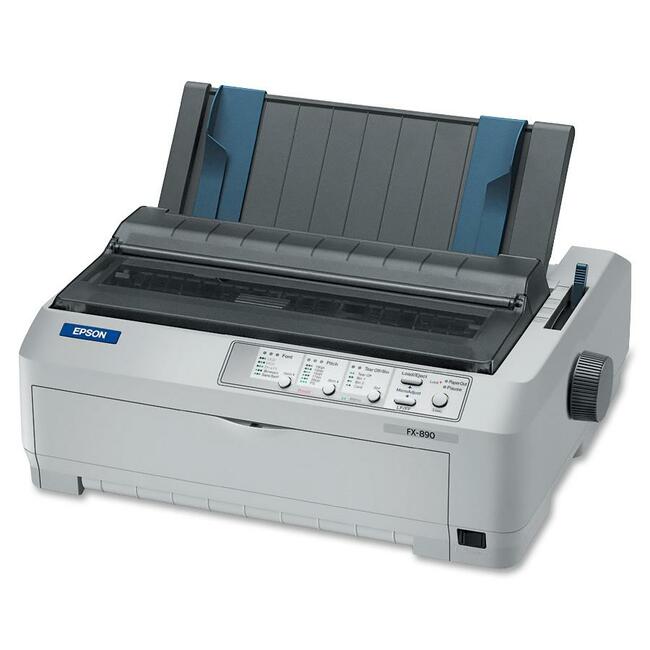

FX-890 dot matrix printer offers ultra-fast 9-pin printing with an MTBF rating of 20,000 power-on hours (POH) and speeds of up to 680 characters per second. Draft speed is 419 characters per second. Near letter-quality speed is 104 characters per second. Engineered for seamless integration into virtually any system, it provides standard Parallel, USB, and additional connectivity options. Includes Epson Remote Configuration Manager software for easy printer setup and simple setting selections via most Windows operating systems. Control panel features a lockout mode and other intuitive functions. Dot matrix printer offers 7 maximum form parts, 128K input buffer, printhead life of 400 million characters at 14 dots per character. Paper feed rate is 62 milliseconds per 1/6" and 5.0" per second continuous feed. Paper size ranges from 3.9" to 10.1".
General Information
-
Manufacturer:
Epson Corporation
-
Manufacturer Part Number:
C11C524001
-
Manufacturer Website Address:
www.epson.com
-
Brand Name:
Epson
-
Product Series:
FX
-
Product Name:
FX-890 Dot Matrix Printer
-
Product Type:
Dot Matrix Printer
Technical Information
-
Print Speed:
559 cps High-speed Mode Draft Quality
-
Maximum Mono Print Speed:
680 cps
-
Print Resolution:
240 x 144 dpi Monochrome
-
Maximum Print Resolution:
240 x 144 dpi
-
Print Direction:
Bi-directional
-
Number of Pins:
9-pin
-
Number of Columns:
160
Media Types & Handling
-
Media Type:
Roll Paper
-
Media Size:
Roll Paper
-
Paper Feed Rate:
5 ips
Fonts & Emulation
-
Fonts:
UPC-E
-
Language Emulation:
Epson ESC/P
Power Description
-
Input Voltage:
110V AC
-
Frequency:
49.5 Hz to 60.5 Hz
Miscellaneous
-
Additional Information:
Paper Feed Mechanism:
Friction feed (front, rear)
Push tractor (front, rear)
Pull tractor (front, bottom, rear)
Push and pull tractor*(front, rear)
Cut-sheet feeder (optional)
Roll paper holder (optional)
*Additional tractor unit required
Paper Path:
Manual insertion: Front or rear in, top out
Cut sheet feeder: Top in, top out
Tractor: Front rear or bottom in, top out
Pull push tractor: Front or rear in, top out
Formatting:
1/6-inch or programmable in 1/432-inch increments
Line Spacing: 6 lines per inch default
(8 lpi option available)
Character Sets:
13 character tables
13 international character sets
Resident Bitmapped Fonts:
Ultra Speed Draft 10, 12 cpi
High Speed Draft 10, 12, 15, 17, 20 cpi
Draft 10, 12, 15, 17, 20 cpi
NLQ (Roman/Sans Serif) 10, 12, 15, 17, 20 cpi, proportional
Paper Feed Speed:
62 millisecond per 1/6"
Print Speed:
680 cps Ultra Speed Draft (12 cpi)
566 cps Ultra Speed Draft (10 cpi)
Total print volume:
52 million lines (except print head)
Paper Handling:
Forms: Continuous multipart, original plus 5 carbonless copies, 1 + 6 copies with pull tractor, maximum thickness .018"
Single sheets: (3.9" to 10.1") Width, (3.9" to 14.3") Length
Continuous: (4.0" to 10.0") Width, (4.0" to 22.0") Length
Cut-sheet feeder: (7.2" to 8.5") Width, (10.1" to 14.0") Length
-
System Requirements:
PC:
Windows 95
Windows 98
Windows 2000
Windows ME
Windows NT 4.0
Windows XP
-
Certifications & Standards:
10561
-
Platform Support:
PC
-
Country of Origin:
Indonesia
Warranty
-
Standard Warranty:
3 Year Limited
-
Parts Warranty/Labor:
3 Year
|
|
|
