Eaton PW5130G 2880VA Tower/Rack Mountable UPS,120V

Computer > Power Protection > UPS Battery Backups

PW5130L3000-XL2U - Eaton PW5130G 2880VA Tower/Rack Mountable UPS,120V

Availability: Out of Stock

Mfg Part# PW5130L3000XL2U

Please alert me when this product comes back in stock:
Email Address:

Product Information

Reviews

Pros / Cons

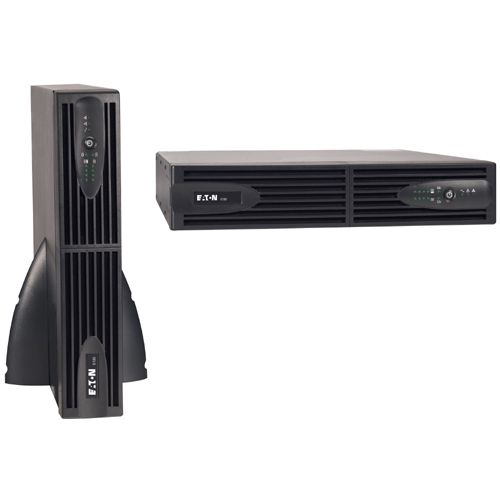

The Eaton 5130 Rack/Tower UPS provides line-interactive backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. With a two-in-one rack/tower form factor, the 5130 UPS packs up to three kVA of power into only 2U of rack space. The 5130 UPS provides additional battery runtime with 2U extended battery modules. To enhance compatibility with modern IT loads, the 5130 UPS is designed with a 0.9 power factor.

General Information

Manufacturer:
Eaton Corporation
Manufacturer Part Number:
PW5130L3000-XL2U
Manufacturer Website Address:
www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name:
Eaton
Product Name:
PW5130G 2880VA Tower/Rack Mountable UPS,120V
Product Type:
Line-interactive UPS

Technical Information

Plug/Connector Type:
NEMA L5-30P
Receptacles:
6 x NEMA 5-20R
Switching Time:
4 ms

Power Description

Load Capacity:
2.88 kVA/2.70 kW
Input Voltage:
110 V AC
Input Voltage Range:
120 V AC Nominal
Output Voltage:
120 V AC
Frequency:
56.5 to 70 Hz Input
Voltage Handling:
-10 or +6% Utility Regulation
Input Current:
25.40 A
Current:
25.40 A Input

Interfaces/Ports

Interfaces/Ports:
RS-232 Serial

Battery Information

Batteries:
4 x Maintenance-free Sealed Lead Acid Hot-swappable
Backup/Run Time:
0.17 Hour 1.35 kW Half Load

Physical Characteristics

Height:
3.4"
Width:
17.4"
Depth:
25.0"
Form Factor:
2U Tower/Rack Mountable
Weight (Approximate):
74.50 lb

Miscellaneous

Package Contents:
Powerware 5130 2880VA Tower/Rack Mountable UPS Software Suite CD RS-232 Serial Cable USB Cable User Guide Phillips Head Screwdriver Quick Start Instructions 4-post Rail Kit Cord-Retention Brackets Tower Pedestals
Additional Information:
Conserves valuable rack space with 2U form factor that includes internal batteries Provides more real power (watts) to protect more equipment and leave room for expanding IT systems with a 0.9 power factor Maximizes availability with extended battery runtime options, hot-swappable batteries and optional maintenance bypass Extends battery runtime for critical devices with load segments Offers choice of rackmount or tower installation with two-in-one form factor (4-post rail kit and tower pedestals included) Delivers control and visibility with free power management software featuring an intuitive user interface
Certifications & Standards:
Safety Markings: UL; cUL Safety Conformance: UL 1778; UL497A; cUL (CAN/CSA C22.2, No. 107.1) EMC Compliance : FCC Part 15 subpart B Class A
Software Included:
Eaton Software Suite

Warranty
