Eaton PW5110 1000, 1000VA Rack-mountable UPS

Computer > Power Protection > UPS Battery Backups

Left Side Pixel
103004258-5591 - Eaton PW5110 1000, 1000VA Rack-mountable UPS

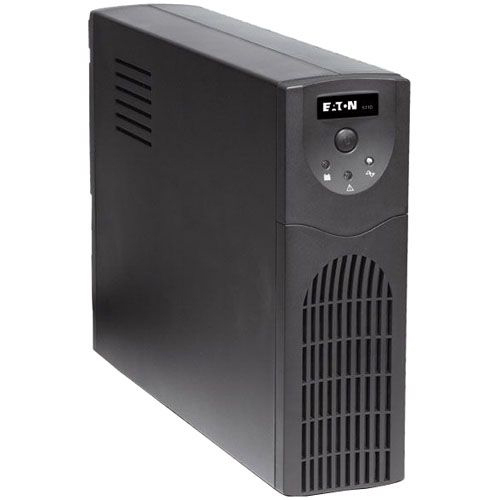

Eaton PW5110 1000, 1000VA Rack-mountable UPS
Bookmark and Share
EATON ELECTRICAL INC.
Price: $136.99
Availability: 111 In Stock
Mfg Part# 1030042585591
Quantity:

HACKER SAFE certified sites prevent over 99.9% of hacker crime.
BBB.org
Right Side Pixel
Bottom Pixel
Advertisement
The Eaton 5110 UPS provides cost-effective line-interactive backup power and voltage regulation for small and medium businesses with workstations, desktop PCs, telephone equipment and POS applications. With its compact form factor, the 5110 UPS can be utilized as a standalone tower or under a computer monitor. The 5110 UPS is equipped with eight outlets - four with surge suppression and battery backup and four with surge suppression only.

General Information
  • Manufacturer:
    Eaton Corporation
  • Manufacturer Part Number:
    103004258-5591
  • Manufacturer Website Address:
    www.eaton.com/EatonCom/Markets/NorthAmerica
  • Brand Name:
    Eaton
  • Product Model:
    PW5110
  • Product Name:
    PW5110 1000, 1000VA Rack-mountable UPS
  • Product Type:
    Line-interactive UPS
Technical Information
  • Plug/Connector Type:
    NEMA 5-15P
  • Receptacles:
    4 x NEMA 5-15R - Battery/Surge-protected
  • Switching Time:
    6 ms
  • Dataline Protection:
    RJ-45 Network
Power Description
  • Load Capacity:
    1 kVA/600 W
  • Input Voltage:
    110 V AC
  • Input Voltage Range:
    120 V AC Nominal
  • Output Voltage:
    115 V AC
  • Frequency:
    60 Hz
  • Voltage Handling:
    -10 to +8% Output
Management
  • Overload Protection:
    Short Circuit Protection: Circuit Breaker
Interfaces/Ports
  • Interfaces/Ports:
    1 x USB
Battery Information
  • Batteries:
    2 x Maintenance-free Sealed Lead Acid
  • Backup/Run Time:
    0.08 Hour 600 W Full Load
Physical Characteristics
  • Form Factor:
    2U Rack-mountable
  • Dimensions:
    10.6" Height x 3.4" Width x 15.1" Depth
  • Weight (Approximate):
    28 lb
Miscellaneous
  • Package Contents:
    Powerware PW5110 1000 1000VA Rack-mountable UPS Software Suite CD USB Cable User Guide
  • Additional Information:
    Keeps essential systems running through power outages (four outlets with battery backup and surge suppression and four outlets with surge suppression only) Saves space with a compact design that can be deployed as a tower or under a computer monitor Delivers consistent, clean output with Automatic Voltage Regulation (AVR) that doesn't drain battery power Extends UPS service life with user-replaceable batteries Protects networked equipment from "back door" surges coming over LAN or telephone lines Informs you of power problems and battery conditions with audible alarms and remote alarm notification via email, pager, the Web, or SNMP
  • Certifications & Standards:
    Safety: UL 1778, Designed to meet UL497A, CAN/CSAOC22.2 No107.1/IEC 6240-1-1 EMI: FCC Class B
  • Software Included:
    Powerware LanSafe Software
Warranty
  • Standard Warranty:
    3 Year
