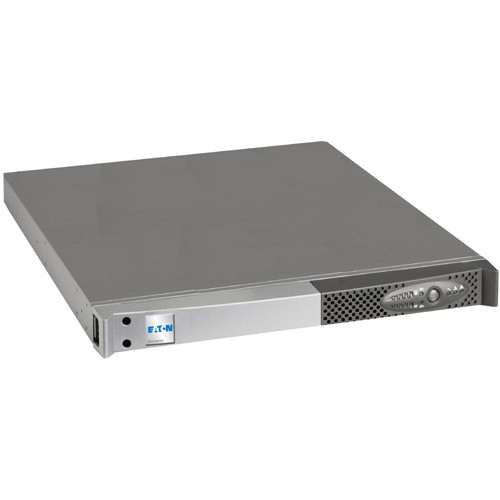

Eaton Evolution 650 VA Rackmount (1U), 120V

Computer > Power Protection > UPS Battery Backups

81701 - Eaton Evolution 650 VA Rackmount (1U), 120V

Availability: Out of Stock

Mfg Part# 81701

Please alert me when this product comes back in stock:
Email Address:

Product Information

Reviews

Pros / Cons

An ideal solution to safeguard servers, network devices, storage systems, point-of-sale terminals and other sensitive electronic equipment, the Eaton Evolution UPS delivers premium line-interactive power protection. With a compact design and flexible installation options, the Evolution can be easily integrated into a wide variety of environments. And, with one of the best price/performance ratios, this UPS offers a low total cost of ownership.

General Information

Manufacturer:
Eaton Corporation
Manufacturer Part Number:
81701
Manufacturer Website Address:
www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name:
Eaton
Product Line:
Evolution
Product Name:
Evolution 650 VA Rackmount (1U), 120V
Product Type:
Line-interactive UPS

Technical Information

Plug/Connector Type:
NEMA 5-15P
Receptacles:
6 x NEMA 5-15R

Power Description

Load Capacity:
650 VA/420 W
Input Voltage:
110 V AC
Input Voltage Range:
89 V AC to 151 V AC
Output Voltage:
100 V AC
Frequency:
56.5 to 70 Hz Input
Voltage Handling:
-10 to +6% Output

Management

Network Management:
SNMP Manageable Optional
Emergency Power OFF:
Yes

Interfaces/Ports

Interfaces/Ports:
1 x USB

Battery Information

Batteries:
1 x Maintenance-free Sealed Lead Acid Hot-swappable
Backup/Run Time:
0.15 Hour 210 W Half Load

Physical Characteristics

Form Factor:
1U Rack-mountable
Dimensions:
17.2" Height x 1.7" Width x 14.4" Depth
Weight (Approximate):
22.30 lb

Miscellaneous

Package Contents:
Evolution 650 VA Rackmount (1U), 120V Power Management Software Suite CD USB Cable Serial Cable DB9/DB9 2 x Brackets for 19" Rack or Wall-Mounting Cable Locking System Hardware Mounting Kit Safety Guide Quick Start 4-Language User Manual
Additional Information:
Line Interactive technology with sine wave output to ride through blackouts and brownouts without stressing the connected devices High density, 1U rackmount up to 1550 VA, mini-tower or rack/tower versatile form factors Hot swappable batteries for high availability. 1 USB port, 1 Serial/Contacts port and 1 card slot for compatibility with existing or future hardware Remote reboot of locked equipment, sequential start-up through individually switchable outlets. Automatic power off for non critical devices on battery operation to conserve runtime for the most demanding systems
Certifications & Standards:
Safety: IEC/EN 62040-1-1 EMC: IEC/EN 62040-2 EN 50091-2 class A Performance: IEC/EN 62040-3 EMI: IEC/EN 61000-4-2, 61000-4-3, 61000-4-4; 61000-4-5, 61000-4-6, 61000-4-8 Approvals: UL, cUL, CE, CB report
Software Included:
Eaton Software Suite
