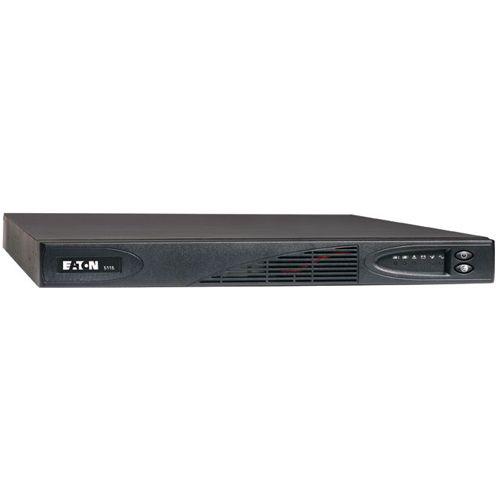

Eaton PW5115 RM 1000VA Rack-mountable UPS, 120V

Computer > Power Protection > UPS Battery Backups

103003272-6591 - Eaton PW5115 RM 1000VA Rack-mountable UPS, 120V

EATON

Price: $445.99

Availability: 20 In Stock

Mfg Part# 1030032726591

Quantity:

Product Information

Reviews

Pros / Cons

Recommended Accessories

The Eaton 5115 Rackmount UPS provides surge protection and backup power ideal for rack servers, storage systems, network equipment and other critical devices. The unique form factor of the 5115 UPS adapts to 1U rackmount, a 0U side cabinet or wall-mount UPS applications. The 5115 UPS also corrects incoming voltage fluctuations, produces true sine wave output and significantly extends battery service life with ABM technology.

General Information

Manufacturer:
Eaton Corporation
Manufacturer Part Number:
103003272-6591
Manufacturer Website Address:
www.eaton.com/EatonCom/Markets/NorthAmerica
Brand Name:
Eaton
Product Model:
PW5115
Product Name:
PW5115 RM 1000VA Rack-mountable UPS, 120V
Product Type:
Line-interactive UPS

Technical Information

Plug/Connector Type:
NEMA 5-15P
Receptacles:
4 x NEMA 5-15R
Switching Time:
4 ms
Dataline Protection:
RJ-11 Modem

Power Description

Load Capacity:
1 kVA/670 W
Input Voltage:
110 V AC
Input Voltage Range:
120 V AC Nominal
Output Voltage:
120 V AC
Frequency:
46 to 65 Hz Input
Voltage Handling:
-10 to +6% Utility Regulation
Input Current:
8.30 A
Current:
8.30 A Input

Management

Network Management:
SNMP Manageable Optional

Interfaces/Ports

Interfaces/Ports:
1 x DB-9 RS-232
Modular Slots:
1 x X-Slot

Battery Information

Batteries:
Maintenance-free Sealed Lead Acid Hot-swappable
Backup/Run Time:
0.08 Hour 670 W Full Load
Battery Recharge Time:
<3 Hour

Physical Characteristics

Height:
1.7"
Width:
17.3"
Depth:
22.8"
Form Factor:
1U Rack-mountable
Weight (Approximate):
41.40 lb

Miscellaneous

Package Contents:
Powerware PW5115 RM 1000VA Rack-mountable UPS Software Suite CD RS-232 Serial Cable USB Cable User Guide 4-post Rail Kit Wall-mount Kit
Additional Information:
Conserves valuable space with 1U rack height Extends battery service life and optimizes battery recharge time with ABM technology Delivers smooth, continuous power with Buck and Boost voltage regulation and pure sine wave output Includes mounting hardware for 1U rackmount, 0U side cabinet, and wall-mount installations Minimizes downtime with hot-swappable batteries Delivers control and visibility with free power management software featuring an intuitive user interface
Certifications & Standards:
Safety Markings: UL, cUL Safety Conformance: UL 1778, UL497A, cUL (CAN/CSA C22.2, No. 107.1) EMC Compliance: FCC Part 15 subpart J Class A, ICES-003
Software Included:
Powerware Software Suite

Warranty
