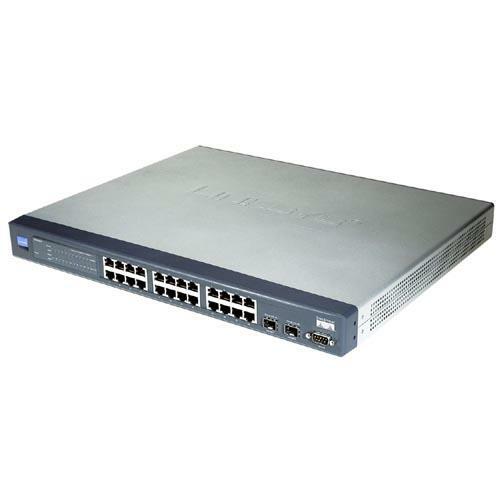

Cisco SRW2024 24-port webView Gigabit Ethernet Switch

Computer > Enterprise Computing > Network Switches

SRW2024 - Cisco SRW2024 24-port webView Gigabit Ethernet Switch

Availability: Out of Stock

Mfg Part# SRW2024

Please alert me when this product comes back in stock:
Email Address:

Product Information

Reviews

Pros / Cons

This new rackmount switch delivers non-blocking, wire speed switching for your 10, 100, and 1000 megabit network clients, plus multiple options for connecting to your network backbone. Twenty-four 10/100/1000 ports wire up your workstations, while the two mini GBIC ports allow future expansion to alternate transmission media like optical fiber for your backbone. It features WebView monitoring and configuration via your web browser, making it easy to manage the 64 VLANs and up to 8 trunking groups.The non-blocking, wire-speed, full-duplex switching forwards packets as fast as your network can deliver them.

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Part Number:
SRW2024
Manufacturer Website Address:
www.cisco.com
Brand Name:
Cisco
Product Model:
SRW2024
Product Name:
SRW2024 24-port webView Gigabit Ethernet Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Number of Ports:
22
Gigabit Ethernet Port:
Yes
Interfaces/Ports:
1 x Console Management

Media & Performance

Connectivity Media:
Category 5e UTP 10/100/1000Base-T

I/O Expansions

Number of Expansion Slots:
2
Expansion Slots:
(2 Total) SFP (mini-GBIC)

Network & Communication

Flow Control:
IEEE 802.3x (Full-duplex)
Switching Method:
Store-and-forward
Layer Supported:
2

Management & Protocols

Manageable:
Yes
Management:
WebView remote monitoring and configuration via web browser QoS (Quality of Service) support CoS (Class of Service) support Remote Monitoring (RMON) 8 port trunking groups Switch Configuration System Information IP Configuration 64 VLANs Telnet
Protocols:
EAP
Security Features:
ACL RADIUS TACACS IEEE 802.1x

Controls/Indicators

Status Indicators:
System Link/Activity Gigabit

Power Description

Input Voltage:
110 V AC
Input Voltage Range:
100 V AC to 240 V AC
Input Current:
500 mA

Environmental Conditions

Temperature:
-40 F (-40 C) to 158 F (70 C) Storage
Humidity:
5% to 90% Non-condensing Storage

Physical Characteristics

Height:
1.8"
Width:
16.9"
Depth:
13.8"
Weight (Approximate):
7.35 lb

Miscellaneous

Additional Information:
Ports 12 and 24 are shared with miniGBIC1 and miniGBIC2, respectively. If shared ports are both connected, then the miniGBIC port has priority. Each mini-GBIC port provides a link to a high-speed network segment or individual workstation at speeds of up to 1000Mbps.
Certifications & Standards:
CE mark UL (UL 1950) CSA (CSA 22.2) EN60950 (2001) Emission EN55022 Immunity EN55024 IEEE Standards: IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1p IEEE 802.1q IEEE 802.1x

Warranty
