Manufacturer

Cisco Systems, Inc

Manufacturer Website Address

www.cisco.com

Marketing Information

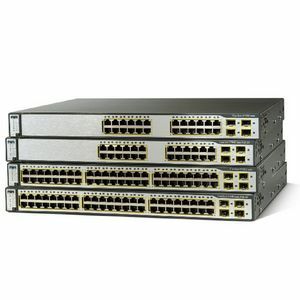

The Cisco Catalyst 3750G-24PS Power over ethernet switch is an innovative switch that improves LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches. This product series represents the next generation in desktop switches, and features Cisco StackWise technology, a 32-Gbps stack interconnect that allows customers to build a unified, highly resilient switching system one switch at a time.

Standard Warranty

Lifetime Limited

Number of Ports

24

Interfaces/Ports

1 x RJ-45 Console Management

Input Voltage Range

100 to 240

Weight

13.5lb

Manufacturer Part Number

WS-C3750G-24PS-S

Brand Name

Cisco

Product Series

3750

Marketing Information

The Cisco Catalyst 3750G-24PS Power over ethernet switch is an innovative switch that improves LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches. This product series represents the next generation in desktop switches, and features Cisco StackWise technology, a 32-Gbps stack interconnect that allows customers to build a unified, highly resilient switching system one switch at a time.

Connectivity Media

Category 5 UTP 10/100/1000Base-T

Performance

32Gbps Stacking Bandwidth

Management

Telnet SNMP v1, v2c, and v3 4000 VLAN IDs are supported SPAN works across all the ports in a stack CiscoWorks for network-wide management Cisco Network Assistant Software Cisco Cluster Management Suite (CMS) Software Command-line interface (CLI) for detailed configuration Web-based tool for quick configuration based on pre-set templates Remote Switch Port Analyzer (RSPAN) allows administrators to remotely monitor ports Up to 1005 VLANs per switch or stack and up to 128 Spanning-Tree instances per switch are supported. Embedded Remote Monitoring (RMON) software agent supports 4 RMON groups (history, statistics, alarms, and events)

Security Features

RADIUS TACACS+ Port-based ACLs (PACLs) Secure Shell (SSH) Protocol Spanning Tree Root Guard (STRG) Cisco CMS Software security wizards 1000 access control entries (ACEs) are supported IEEE 802.1x allows dynamic, port-based security, providing user authentication Port-based ACLs for Layer 2 interfaces allow security policies to be applied on individual switch ports. IEEE 802.1x with an ACL assignment allows for specific identity-based security policies regardless of where the user is connected.

Package Contents

Catalyst 3750 Switch Catalyst 3750 Switch Hardware Installation Guide About the Catalyst 3750 Documentation flyer AC power cord One RJ-45-to-DB-9 adapter cable Mounting kit containing: Four rubber feet for mounting the switch on a table Two 19-inch rack-mounting brackets Six Phillips flat-head screws for attaching the brackets to the switch Four Phillips machine screws for attaching the brackets to a rack One cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets One RPS connector cover (for wall mounting) Two Phillips pan-head screws (for attaching the RPS cover) Four Phillips truss-head screws (for wall-mounting brackets) CAB-STACK-50CM: Cisco StackWise 50CM Stacking Cable

Certifications & Standards

IEEE: IEEE 802.3 IEEE 802.3u IEEE 802.1s IEEE 802.3af IEEE 802.1w IEEE 802.1x IEEE 802.3ad IEEE 802.3ae IEEE 802.3x IEEE 802.1D Management: BRIDGE-MIB CISCO-CDP-MIB CISCO-CLUSTER-MIB CISCO-CONF-MAN-MIB CISCO-ENTITY-FRU-CONTROL-MIB CISCO-ENVMON-MIB CISCO-FLASH-MIB CISCO-FTP-CLIENT-MIB CISCO-HSRP-MIB CISCO-HSRP-EXT-MIB CISCO-IGMP-FILTER-MIB CISCO-IMAGE-MIB CISCO-L2L3-INTERFACE-CONFIG-MIB CISCO-MAC-NOTIFICATION-MIB CISCO-MEMORY-POOL-MIB CISCO-PAGP-MIB CISCO-PING-MIB CISCO-PROCESS-MIB CISCO-RTTMON-MIB CISCO-STACK-MIB CISCO-STACKMAKER-MIB CISCO-STP-EXTENSIONS-MIB CISCO-SYSLOG-MIB CISCO-TCP-MIB CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB CISCO-VLAN-MEMBERSHIP-MIB CISCO-VTP-MIB ENTITY-MIB ETHERLIKE-MIB IF-MIB IGMP-MIB IPMROUTE-MIB OLD-CISCO-CHASSIS-MIB OLD-CISCO-FLASH-MIB OLD-CISCO-INTERFACES-MIB OLD-CISCO-IP-MIB OLD-CISCO-SYS-MIB OLD-CISCO-TCP-MIB OLD-CISCO-TS-MIB OSPF-MIB (RFC 1253) PIM-MIB RFC1213-MIB RFC1253-MIB RMON-MIB RMON2-MIB RMON I and II standards SNMPv1, SNMPv2c, SNMPv3 SNMP-FRAMEWORK-MIB SNMP-MPD-MIB SNMP-NOTIFICATION-MIB SNMP-TARGET-MIB SNMPv2-MIB TCP-MIB UDP-MIB Safety Certifications: UL to UL 60950, Third Edition C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition TUV/GS to EN 60950:2000 CB to IEC 60950 with all country deviations NOM to NOM-019-SCFI CE Marking Electromagnetic Emissions Certifications: FCC Part 15 Class A EN 55022: 1998 (CISPR22) EN 55024: 1998 (CISPR24) VCCI Class A AS/NZS 3548 Class A CE CNS 13438 Class A MIC Telco: CLEI code

Input Voltage Range

100 to 240

Frequency

50 Hz or 60 Hz

Power Source

Power Supply

Temperature

-13 °F (-25 °C) to 158 °F (70 °C) Storage

Altitude

15000 ft Maximum Storage

Dimensions

1.73" Height x 17.5" Width x 14.9" Depth

Standard Warranty

Lifetime Limited

Layer Support

4

Address Table

12K MAC Addresses

Gigabit Ethernet Port

Yes

Number of Expansion Slots

4

Modules

Not Included

Status Indicators

Per-port status LEDs: Link integrity Disabled Activity Speed Full-duplex indications System-status LEDs: System RPS Bandwidth-utilization indications

Memory Technology

DRAM
