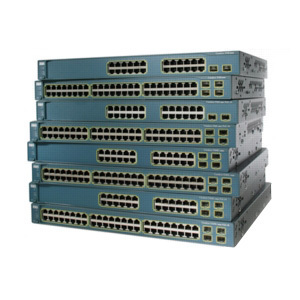

The Cisco Catalyst 3560 is a line of fixed-configuration, enterprise-class switch. The Cisco Catalyst 3560 is an ideal access layer switch for small enterprise LAN access or branch offices configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks. Customers can deploy networkwide intelligent services, such as advanced quality of service (QoS), rate limiting, access control lists (ACLs), multicast management, and high-performance IP routing, while maintaining the simplicity of traditional LAN switching.
Manufacturer:
Cisco Systems, Inc
Manufacturer Part Number:
WS-C3560G-24TS-S
Manufacturer Website Address:
www.cisco.com
Brand Name:
Cisco
Product Line:
Catalyst
Product Series:
3560
Product Model:
3560G-24TS-S
Product Name:
Catalyst 3560 Gigabit Ethernet Switch
Product Type:
Ethernet Switch
Manageable:
Yes
Management:
SNMPv1, SNMPv2c, and SNMPv3 policy management Command-line interface (CLI) Resource Manager Essentials Web-based management Cisco Network Assistant Software Four thousand VLAN IDs are supported Management console port: RJ-45-to-DB-9 cable for PC connections Service Assurance Agent (SAA) support facilitates service-level management throughout the LAN. Up to 1024 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported Embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events). VLAN trunks can be created from any port, using either standards-based 802.1Q tagging or the Cisco Inter-Switch Link (ISL) VLAN architecture. Remote SPAN (RSPAN) allows administrators to remotely monitor ports in a Layer 2 switch network from any other switch in the same network.
Protocols:
NTP
Security Features:
Secure Shell (SSH) Protocol Version 2 (IDS) to take action when an intruder is detected. One thousand access control entries (ACEs) are supported TACACS+ and RADIUS authentication enable centralized control of the switch IEEE 802.1x allows dynamic, port-based security, providing user authentication Port security secures the access to an access or trunk port based on MAC address Unicast MAC filtering prevents the forwarding of any type of packet with a matching MAC address. Port-based ACLs (PACLs) for Layer 2 interfaces allow application of security policies on individual switch ports. Cisco security VLAN ACLs (VACLs) on all VLANs prevent unauthorized data flows from being bridged within VLANs. Bidirectional data support on the Switched Port Analyzer (SPAN) port allows the Cisco Secure Intrusion Detection System.
Standard Memory:
128 MB
Memory Technology:
DRAM
Flash Memory:
32 MB
Input Voltage:
110 V AC
Input Voltage Range:
100 V AC to 240 V AC
Input Current:
1.50 Ato 3 A
Frequency:
50 Hz or 60 Hz
Power Consumption:
100 W @
Height:
1.7"
Width:
17.5"
Depth:
14.9"
Weight (Approximate):
12 lb
Additional Information:
Advanced IP routing Configurable up to 11,000 unicast routes Configurable up to 1000 IGMP groups and multicast routes Acoustic Noise: 42dBa DC Input Voltages (RPS Input): 10.5A Power Rating: 0.10 kVA Telco: Common Language Equipment Identifier (CLEI) code Configurable maximum transmission unit (MTU) of up to 9000 bytes, with a maximum Ethernet frame size of 9018 bytes (Jumbo frames), for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging of Multiprotocol Label Switching (MPLS) tagged frames on 10/100 ports. QoS and Control: Advanced QoS Granular Rate Limiting: The Cisco Committed Information Rate (CIR) function guarantees bandwidth in increments as low as 8 kbps.
Certifications & Standards:
IEEE: IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3ad IEEE 802.3x IEEE 802.1D Spanning Tree Protocol IEEE 802.1p CoS Prioritization IEEE 802.1Q VLAN IEEE 802.3 10BASE-T specification IEEE 802.3u 100BASE-TX specification IEEE 802.3ab 1000BASE-T specification IEEE 802.3z 1000BASE-X specification Safety Certifications: UL to UL 60950, Third Edition C-UL to CAN/CSA C22.2 No. 60950-00, Third Edition TUV/GS to EN 60950:2000 CB to IEC 60950 with all country deviations NOM to NOM-019-SCFI CE Marking Electromagnetic Emissions Certifications: FCC Part 15 Class A EN 55022: 1998 (CISPR22) EN 55024: 1998 (CISPR24) VCCI Class A AS/NZS 3548 Class A CE CNS 13438 Class A MIC MIB: BRIDGE-MIB CISCO-CDP-MIB CISCO-CLUSTER-MIB CISCO-CONFIG-MAN-MIB CISCO-ENTITY-FRU-CONTROL-MIB CISCO-ENVMON-MIB CISCO-FLASH-MIB CISCO-FTP-CLIENT-MIB CISCO-HSRP-MIB CISCO-HSRP-EXT-MIB CISCO-IGMP-FILTER-MIB CISCO-IMAGE-MIB CISCO-IP-STAT-MIB CISCO-L2L3-INTERFACE-CONFIG-MIB CISCO-MAC-NOTIFICATION-MIB CISCO-MEMORY-POOL-MIB CISCO-PAGP-MIB CISCO-PING-MIB CISCO-PROCESS-MIB CISCO-RTTMON-MIB CISCO-STP-EXTENSIONS-MIB CISCO-SYSLOG-MIB CISCO-TCP-MIB CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB CISCO-VLAN-MEMBERSHIP-MIB CISCO-VTP-MIB ENTITY-MIB ETHERLIKE-MIB IF-MIB IGMP-MIB IPMROUTE-MIB OLD-CISCO-CHASSIS-MIB OLD-CISCO-FLASH-MIB OLD-CISCO-INTERFACES-MIB OLD-CISCO-IP-MIB OLD-CISCO-SYS-MIB OLD-CISCO-TCP-MIB OLD-CISCO-TS-MIB OSPF-MIB (RFC 1253) PIM-MIB RFC1213-MIB RFC1253-MIB RMON-MIB RMON2-MIB SNMP-FRAMEWORK-MIB SNMP-MPD-MIB SNMP-NOTIFICATION-MIB SNMP-TARGET-MIB SNMPv2-MIB TCP-MIB UDP-MIB
Standard Warranty:
Lifetime Limited
