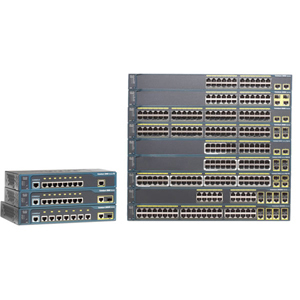

Cisco Catalyst 2960 Intelligent Ethernet Switch is a new family of fixed-configuration standalone device that provide desktop Fast Ethernet and Gigabit Ethernet connectivity, enabling enhanced LAN services for entry-level enterprise, mid-market, and branch office networks. The Catalyst 2960 offers integrated security, including network admission control (NAC), advanced quality of service (QoS), and resiliency to deliver intelligent services for the network edge.
Manufacturer:
Cisco Systems, Inc
Manufacturer Part Number:
WS-C2960-48TT-L
Manufacturer Website Address:
www.cisco.com
Brand Name:
Cisco
Product Line:
Catalyst
Product Series:
2960
Product Model:
2960-48TT
Product Name:
Catalyst 2960-48TT Ethernet Switch
Product Type:
Ethernet Switch
Manageable:
Yes
Management:
Cisco Network Assistant CiscoWorks Support Device manager Cisco Express Setup CiscoView application Cisco Network Assistant Software Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized location Network Timing Protocol (NTP) provides an accurate and consistent timestamp to all intranet switches Cisco IOS CLI support provides a common user interface and command set with all Cisco routers and Cisco Catalyst desktop switches Cisco Service Assurance Agent (SAA) support facilitates service-level management throughout the LAN Switching Database Manager templates for security and QoS allow administrators to easily adjust memory allocation to the desired features based on deployment-specific requirements VLAN trunks can be created from any port using standards-based 802.1q tagging Up to 255 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported. Four thousand VLAN IDs are supported Voice VLAN simplifies telephony installations by keeping voice traffic on a separate VLAN for easier administration and troubleshooting Cisco VTP supports dynamic VLANs and dynamic trunk configuration across all switches SNMP v1, v2c, and v3 and Telnet interface support delivers comprehensive in-band management, and a CLI-based management console provides detailed out-of-band management Cisco Discovery Protocol Versions 1 and 2 help enable a CiscoWorks network-management station for automatic switch discovery
Input Voltage:
220 V AC
Input Voltage Range:
100 V AC to 240 V AC
Power Source:
Power Supply
Redundant Power Supply:
Yes
Height:
1.7"
Width:
17.5"
Depth:
9.3"
Weight (Approximate):
8 lb
Package Contents:
Catalyst 2960-48TT Ethernet Switch Catalyst 2960 Switch Getting Started Guide Regulatory Compliance and Safety Information for the Catalyst 2960 Switch AC power cord One RJ-45-to-DB-9 adapter cable Mounting kit containing: Four rubber feet for mounting the switch on a table Two 19-inch rack-mounting brackets (also used for wall mounting) Six Phillips flat-head screws for attaching the brackets to the switch Four Phillips machine screws for attaching the brackets to a rack One cable guide and one black Phillips machine screw for attaching the cable guide to one of the mounting brackets One Redundant Power System (RPS) connector cover (for wall mounting) Two Phillips pan-head screws (for attaching the RPS cover) Four Phillips truss-head screws (for wall-mounting brackets)
Additional Information:
64 MB DRAM 32 MB flash memory LAN Base Image installed Configurable up to 8000 MAC addresses Configurable up to 255 IGMP groups Cisco Catalyst 2960-24TT: 245,213 hr Superior Redundancy for Fault Backup Integrated Cisco IOS Software Features for Bandwidth Optimization Advanced QoS Granular Rate Limiting Networkwide Security Features
Standard Warranty:
Lifetime Limited
