Cisco 9-port 10/100 Ethernet Switch HWIC

Computer > Enterprise Computing > Network Switches

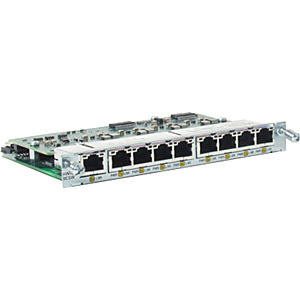

HWIC-D-9ESW= - Cisco 9-port 10/100 Ethernet Switch HWIC

CISCO SYSTEMS

Price: $516.99

Availability: 28 In Stock

Mfg Part# HWICD9ESW

Quantity:

The 9-port Cisco EtherSwitch 10/100 high-speed WAN interface card (HWIC) supported on the Cisco 2800 and Cisco 3800 series integrated services routers offer small-to-large-size businesses and enterprise branch office customers the option to integrate switching and routing in one device. This combination offers ease of configuration, deployment, and management while using the powerful characteristics of Cisco routing and Cisco Catalyst switching features.

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Part Number:
HWIC-D-9ESW=
Manufacturer Website Address:
www.cisco.com
Brand Name:
Cisco
Product Name:
9-port 10/100 Ethernet Switch HWIC
Product Type:
HWIC

Technical Information

Application/Usage:
Wide Area Network

Interfaces/Ports

Interfaces/Ports:
9 x 10/100Base-TX
Interfaces/Ports Details:
9 x RJ-45 10/100Base-TX Auto-sensing/Auto-negotiating/Auto MDI/MDI-X

Media & Performance

Connectivity Media:
Category 4 UTP 10Base-T
Data Transfer Rate:
10 Mbps Ethernet Half/Full-duplex

Management & Protocols

Management:
SNMP and Telnet interface support delivers comprehensive in-band management, and a CLI management console provides detailed out-of-band management Embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis Switched Port Analyzer (SPAN) port can mirror traffic from one or many ports to another port for monitoring all nine RMON groups with an RMON probe or network analyzer Response Time Monitoring (RTTMON) MIB allows users to monitor network performance between the HWIC switch and a remote device Virtual LAN
Protocols:
HSRP

Controls/Indicators

Status Indicators:
Link status Inline power

Environmental Conditions

Temperature:
32 F (0 C) to 104 F (40 C) Operating
Humidity:
5% to 95% Non-condensing Non-operating

Physical Characteristics

Dimensions:
0.8" Height x 6.2" Width x 4.7" Depth
Weight (Approximate):
5.26 oz

Miscellaneous

Additional Information:
Operating Altitude: derate 1.5 C per 1000 feet
System Requirements:
Supported Platforms & Minimum IOS Versions: 3845 - 12.3(11)T 3825 - 12.3(11)T 2801 - 12.3(8)T 2811 - 12.3(8)T 2821 - 12.3(8)T 2851 - 12.3(8)T
Compatibility:
Supported Platforms: 2801 2811 2821 2851 3825 3845
Certifications & Standards:
IEEE 802.3: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.1d: Spanning Tree Protocol IEEE 802.1p: CoS for Traffic Prioritization IEEE 802.1q: VLAN IEEE 802.1x: Security IEEE 802.3x: Full Duplex and Flow Control RFC: RFC 2284, PPP Extensible Authentication Protocol (EAP) MIBs: RFC 1213 IF MIB RFC 2037 ENTITY MIB CISCO-CDP-MIB CISCO-IMAGE-MIB CISCO-FLASH-MIB OLD-CISCO-CHASSIS-MIB CISCO-VTP-MIB CISCO-HSRP-MIB OLD-CISCO-TS-MIB CISCO-ENTITY-ASSET-MIB CISCO-ENTITY-FRU-CONTROL-MIB BRIDGE MIB (RFC 1493) CISCO-VLAN-MEMBERSHIP-MIB CISCO-VLAN-IFINDEX-RELATIONSHIP-MIB RMON1-MIB PIM-MIB CISCO-STP-EXTENSIONS-MIB OSPF MIB (RFC 1253) IPMROUTE-MIB CISCO-MEMORY-POOL-MIB ETHER-LIKE-MIB (RFC 1643) CISCO-ENTITY-FRU-CONTROL-MIB.my CISCO-RTTMON-MIB CISCO-PROCESS-MIB CISCO-COPS-CLIENT-MIB

Warranty
