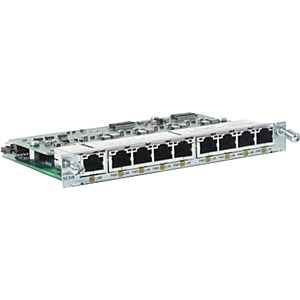

CISCO SYSTEMS, Cisco 9-Port Ethernet Switch HWIC with Power Over Ethernet, HWICD9ESWPOE, Reviews

General Information

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

HWIC-D-9ESW-POE=

Manufacturer Website Address

www.cisco.com

Product Name

9-Port Ethernet Switch HWIC with Power Over Ethernet

Marketing Information

The 9-port Cisco EtherSwitch 10/100 high-speed WAN interface card (HWIC) supported on the Cisco 2800, and Cisco 3800 series integrated services routers offer small-to-large-size businesses and enterprise branch office customers the option to integrate switching and routing in one device. This combination offers ease of configuration, deployment, and management while using the powerful characteristics of Cisco routing and Cisco Catalyst switching features.

Product Type

HWIC

Miscellaneous

Compatibility

Supported Platforms: 2801 2811 2821 2851 3825 3845

Warranty

Standard Warranty

90 Day Limited

Interfaces/Ports

Interfaces/Ports

9 x 10/100Base-TX

Interfaces/Ports Details

9 x RJ-45 10/100Base-TX Auto-sensing/Auto-negotiating/Auto MDI/MDI-X

I/O Expansions

Daughter Cards

ILPM-8= (8-port Inline power module)

Physical Characteristics

Dimensions

0.76" Height x 6.2" Width x 4.74" Depth

Weight

6.91 oz

General Information

Manufacturer

Cisco Systems, Inc

Manufacturer Part Number

HWIC-D-9ESW-POE=

Manufacturer Website Address

www.cisco.com

Brand Name

Cisco

Product Name

9-Port Ethernet Switch HWIC with Power Over Ethernet

Marketing Information

The 9-port Cisco EtherSwitch 10/100 high-speed WAN interface card (HWIC) supported on the Cisco 2800, and Cisco 3800 series integrated services routers offer small-to-large-size businesses and enterprise branch office customers the option to integrate switching and routing in one device. This combination offers ease of configuration, deployment, and management while using the powerful characteristics of Cisco routing and Cisco Catalyst switching features.

Product Type

HWIC

Media & Performance

Connectivity Media

Category 5 UTP 10/100Base-TX

Data Transfer Rate

100Mbps Fast Ethernet Half/Full-duplex

Management & Protocols

Management

SNMP and Telnet interface support delivers comprehensive in-band management, and a CLI management console provides detailed out-of-band management Embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis Switched Port Analyzer (SPAN) port can mirror traffic from one or many ports to another port for monitoring all nine RMON groups with an RMON probe or network analyzer Response Time Monitoring (RTTMON) MIB allows users to monitor network performance between the HWIC switch and a remote device VLAN

Protocols

HSRP

Miscellaneous

Additional Information

The ninth port of the 9-port HWIC cannot be used for PoE applications Operating altitude (derate 1.5°C per 1000 feet)

System Requirements

Supported Platforms & Minimum IOS Versions: 3845 - 12.3(11)T 3825 - 12.3(11)T 2801 - 12.3(8)T 2811 - 12.3(8)T 2821 - 12.3(8)T 2851 - 12.3(8)T

Compatibility

Supported Platforms: 2801 2811 2821 2851 3825 3845

Certifications & Standards

IEEE 802.3: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.1d: Spanning Tree Protocol IEEE 802.1p: CoS for Traffic Prioritization IEEE 802.1q: VLAN IEEE 802.1x: Security IEEE 802.3x: Full Duplex and Flow Control IEEE 802.3af: Power over Ethernet Standard RFC: RFC 2284, PPP Extensible Authentication Protocol (EAP) MIBs: RFC 1213 IF MIB RFC 2037 ENTITY MIB CISCO-CDP-MIB CISCO-IMAGE-MIB CISCO-FLASH-MIB OLD-CISCO-CHASSIS-MIB CISCO-VTP-MIB CISCO-HSRP-MIB OLD-CISCO-TS-MIB CISCO-ENTITY-ASSET-MIB CISCO-ENTITY-FRU-CONTROL-MIB BRIDGE MIB (RFC 1493) CISCO-VLAN-MEMBERSHIP-MIB CISCO-VLAN-IFINDEX-RELATIONSHIP-MIB RMON1-MIB PIM-MIB CISCO-STP-EXTENSIONS-MIB OSPF MIB (RFC 1253) IPMROUTE-MIB CISCO-MEMORY-POOL-MIB ETHER-LIKE-MIB (RFC 1643) CISCO-ENTITY-FRU-CONTROL-MIB.my CISCO-RTTMON-MIB CISCO-PROCESS-MIB CISCO-COPS-CLIENT-MIB

Environmental Conditions

Temperature

-4 °F (-20 °C) to 149 °F (65 °C) Non-operating

Humidity
